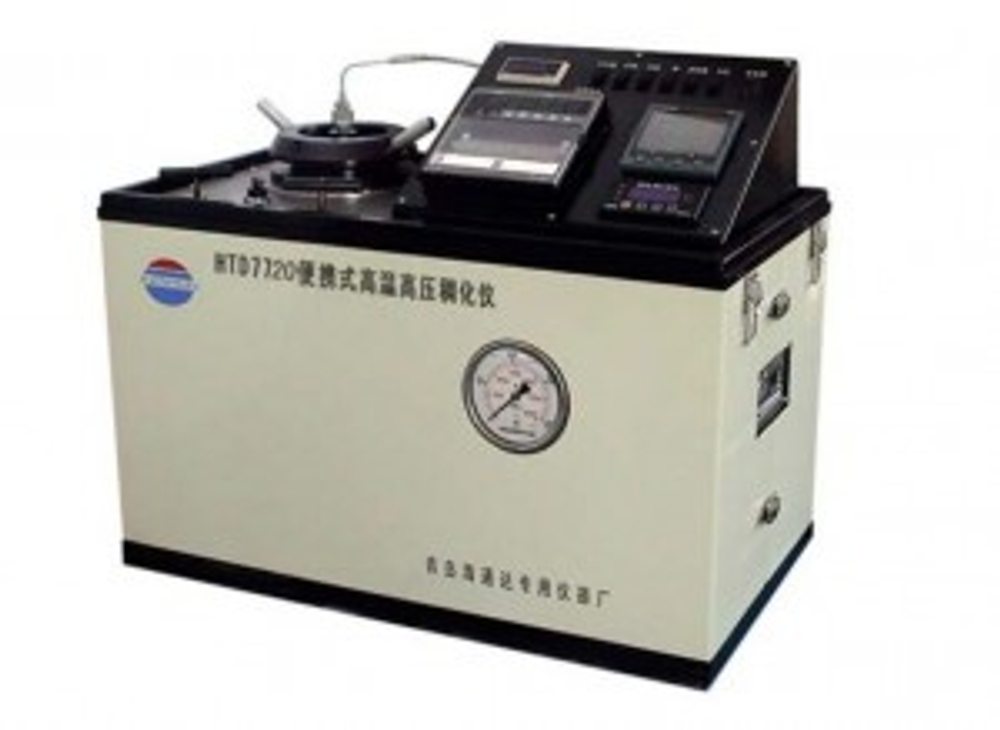

Model: HTD-7720
Features
Comply to the API requirements
Digital intelligent controller, temperature digital display
Autoclave body made of special alloy
Max pressure up to 20000PSI, 137Mpa
Temperature up to 204 degree C(400 Fahrenheit)
Solid & durable in use
Large power heater
Magnetic driving device, less maintenance work
With cooling device rapidly to cool
Autoclave body use universal O TYPE sealing ring to seal
Pen type recorder to record the temperature and consistency value
Equipped with computer interface
Technical Specifications
| Max working temperature | 204 degree c, (400 degree Fahrenheit) |
| Max working pressure | 137Mpa(20000psi) |
| Heater power | 3000w |
| Fluids cup rotation rate | 150rpm |
| Consistency range | 0-100bc |
| Pressure medium | HTHP consistometer specialized oil |
| Automatic pressure controller | Automatic control autoclave pressure |
| Consistency resolution | 1bc |
| Input voltage | 220VAC 50/60hz |
| Input power | 4000 w |
| Environment working temperature | 0–50 degree c(32–120f) |
| Compressed air | 400–700kpa (50–100psi) |
| Cooling water | 600kpa(20–80psi) |
| Cooling water joint | 1/4npt |
| Gross weight | 135kg |
| Packing size | 780*480*780 |
| Net weight | 120kg |
| Instrument dimension | 680*680*600mm |
