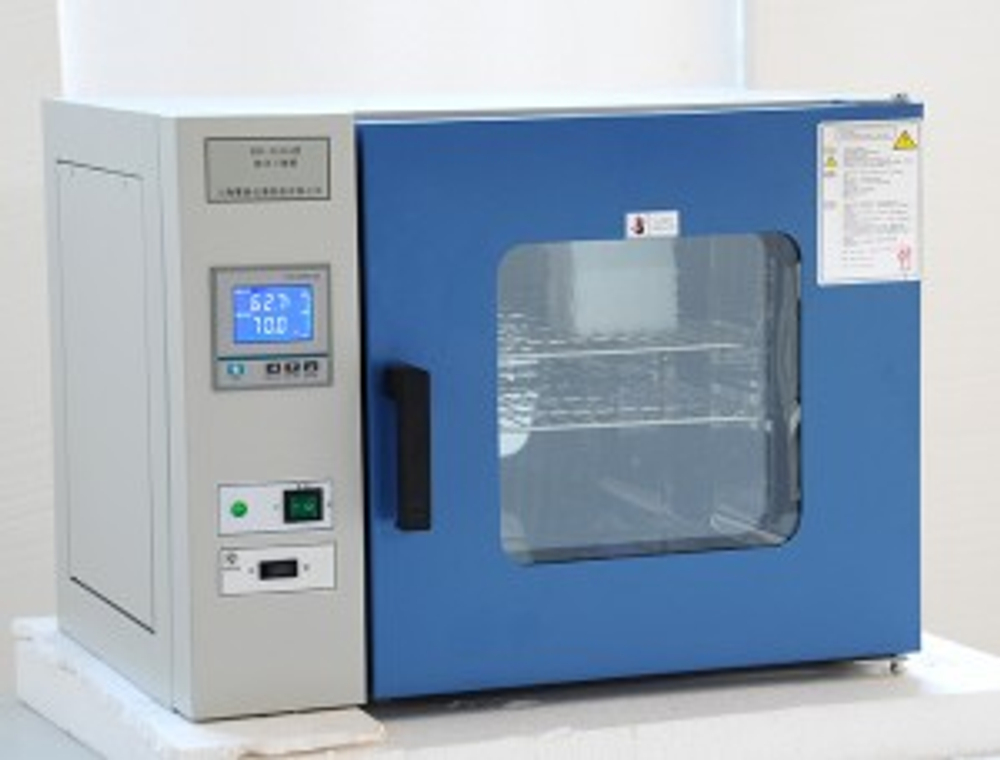

Model: DHG
Application
Drying, baking, sterilization in factory, laboratory etc.
Features
Large LCD display, multi groups data one screen display, easy operation
Fan speed controllable
Automatic vapour exhaust
Temperature deviation protection, digital display temperature controller, timing function
Linear made of mirror stainless steel, demountable shelves, easy cleaning
Enclosure made of high quality cold rolled steel plate, plastics spraying on surface
Independent temperature limit system(optional), automatic stop if temperature exceeds, guarantee operation safety
RS485 port for connection with recorder and computer(optional)
Optional parts
Intelligent program controller
Independent temperature controller
Embedded printer
RS485 port and professional software
Test hole 25mm/50mm
Technical Specifications
| Item | 9030A | 9050A | 9070A | 9140A | 9240A | 9240A |
| Power Supply | AC220V 50HZ | |||||
| Temperature Range | RT+10~250℃ | |||||
| Fluctuation | ±1℃ | |||||
| Resolution | 0.1℃ | |||||
| Input Power | 850W | 1100W | 1550W | 2050W | 2500W | 2500W |
| Chamber Size W×D×H(Mm) | 340×330×320 | 420×350×390 | 450×400×450 | 550×450×550 | 600× 595×650 | 600×595×750 |
| Overall Size W×D×H(Mm) | 625×540×500 | 705×610×530 | 735×615×630 | 835×670×730 | 880×800×830 | 880×800×930 |
| Volume | 30L | 50L | 80L | 136L | 220L | 260L |
| Support Frame | 2pcs | |||||
| Timing Range | 1~9999min | |||||
| Item | 9035A | 9055A | 9075A | 9145A | 9245A |
| Power Supply | AC220V 50HZ | ||||
| Temperature Range | RT+10~300℃ | ||||
| Fluctuation | ±1℃ | ||||
| Resolution | 0.1℃ | ||||
| Input Power | 850W | 1100W | 1550W | 2050W | 2500W |
| Working Chamber Size W×D×H(Mm) | 340×330×320 | 420×350×390 | 450×400×450 | 550×450×550 | 600×595×650 |
| Overall Size W×D×H(Mm) | 625×540×500 | 705×610×530 | 735×615×630 | 835×670×730 | 880×800×830 |
| Volume | 30L | 50L | 80L | 136L | 220L |
| Support Frame | 2pcs | ||||
| Timing Range | 1~9999min | ||||
