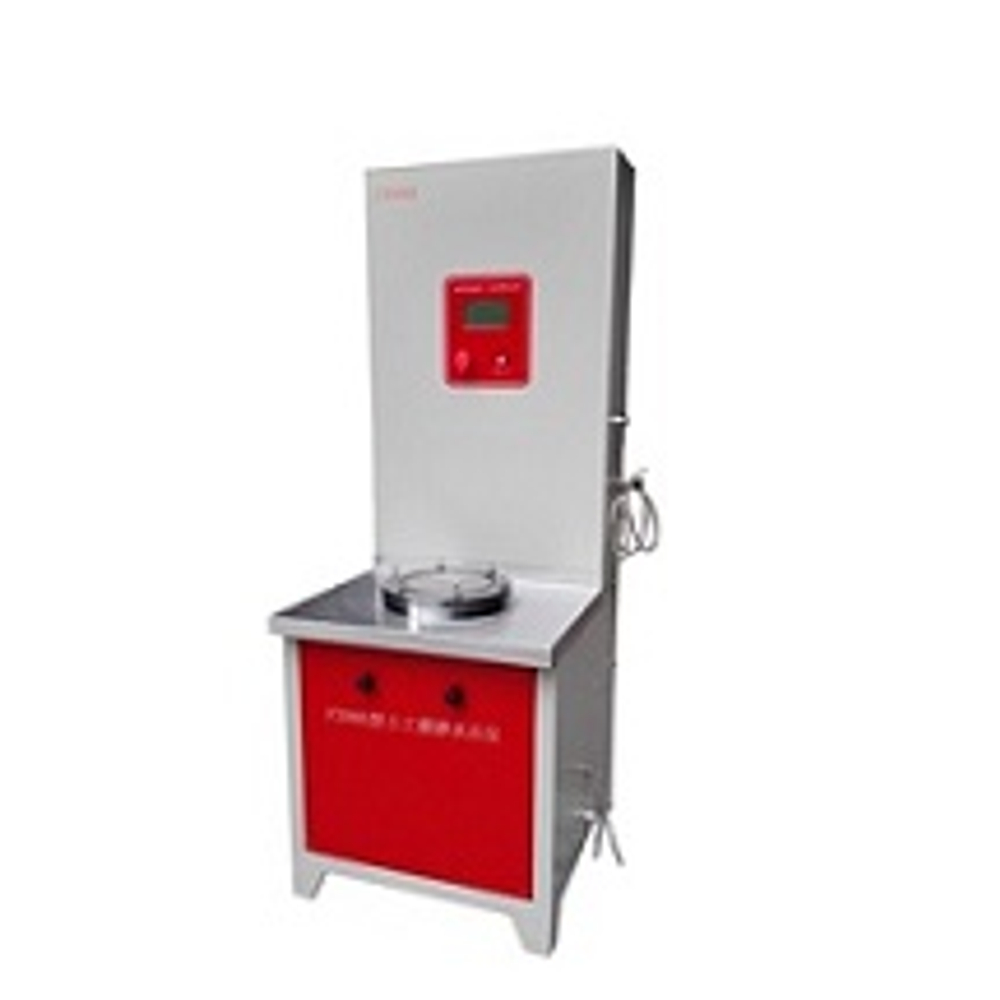

Model: GT080S
Description
This tester is used to test the impervious characteristics of non-woven geotextiles (one cloth one membrane, two cloth one membrane), it’s kind of common geosynthetics testing equipment.
Test principle
When the water head pressure reaches a specific value, the sample will broken; increase the water pressure difference and keep with a certain time, when the flow increase rapidly, means that the sample is broken, thus obtain the hydrostatic pressure value, this equipment has two functions, that’s hydrostatic pressure measurement and permeability index test.
Standards
GB/T17642–1998《Composite geomembrane permeability performance test method》GB/T 17642-2008《geosynthetics non-woven composite geomembrane permeability test method》GB/T19979《Geosynthetics impervious test method》 JTG E50-2006
Features
High definition LCD display
Test disc use SUS 304 material, corrosion resistant, easy to clean, nice appearance
Multifunctional, can test either the hydrostatic pressure and the permeability index
Machine body surface with Dupont powder eletrostatic coating treatment, with 200 degree C high temperature solidification, guarantee long time no fastness.
Technical specifications
Pressure range: 0~4.0Mpa
Pressure resolution: 0.05 Mpa
Water collector inner diameter: 200mm
Perforated plate diameter: 3±0.05mm
Perforated plate hole gap: 6mm
Overall dimension: W 700×D 550×H 1650mm
Power supply: AC220V/50Hz,100W
