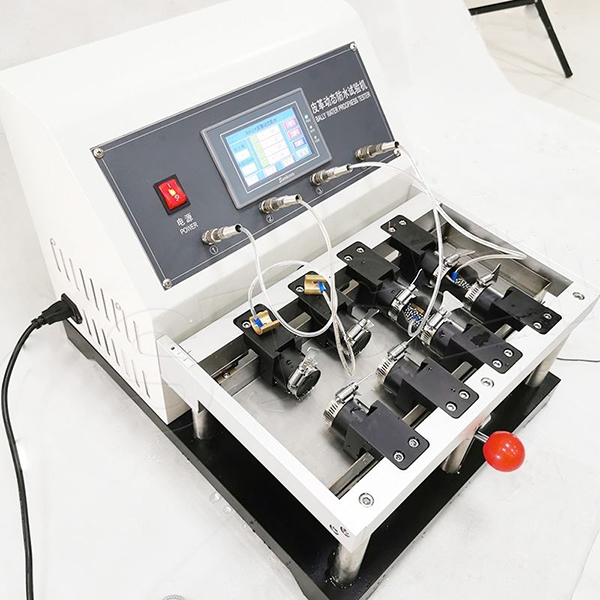

Leather Dynamic Water Permeability Tester

Model: XC-FS-TM171

The SATRA TM171 BALLY leather dynamic waterproof tester is used to measure the water permeability and water absorption of upper. Mainly for the materials used in the upper: leather, artificial leather, cloth, etc., cut standard test pieces and install them on the testing machine. Under the condition of water on the periphery, bend them at a standard rate and angle. After bending for a certain time, measure the permeability index of the material, as the basis for developing and improving the waterproof processing of the material.

Main functions

Test the dynamic waterproof energy consumption of shoe material leather, artificial leather and cloth.

Standards

DIN-5333E EN20344 GB/T20991-2007 SATRA TM171 ISO 14268 ISO 5403-1 GB-T 3903.17 GB/T 22890-2008 and other standards;

Features

The mechanical parts are composed of non-corrosive structure and stainless steel materials;

Body surface treatment: DuPont powder, electrostatic spray painting process, curing at high temperature of 200 ℃ to ensure long-term fastness

Color LCD touch screen control and display, human-computer interface, simple operation, convenient maintenance, stable and reliable;

Inching adjustment, adjustable fixture spacing;

Independent sensing probe, independent research and development of water leakage system; Stainless steel sink, adjustable up and down;

Automatic stop of water leakage and system display;

Specifications
