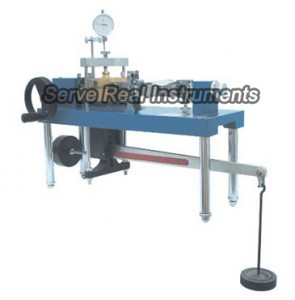

Light duty strain-controlled shear test apparatus

Model: TZJ-1

Description

The light duty strain-controlled shear test apparatus is used to test the soil shearing strength, it can apply 4 different vertical pressure (400Kpa, 300Kpa, 200Kpa, 50Kpa) on specimens, then apply horizontal force to shear, so that to get the broken shearing force, thus can obtain the shearing strength coefficient, internal friction angle and cohesion force according on the Coulomb’s law.

Technical specifications

Specimen area: 30cm2 x 2cm (H)

Lever ratio: 1:20

Vertical gradation loading: 50KPa, 100KPa, 200KPa, 300KPa, 400KPa(hanger is first grade)

Horizontal loading: Max.1.2KN

Size: 850 x 550 x 1100mm (L x W x H)

Weight: 40Kg
