Standards: JTG E20 T 0632
Model: LY-0632
Description

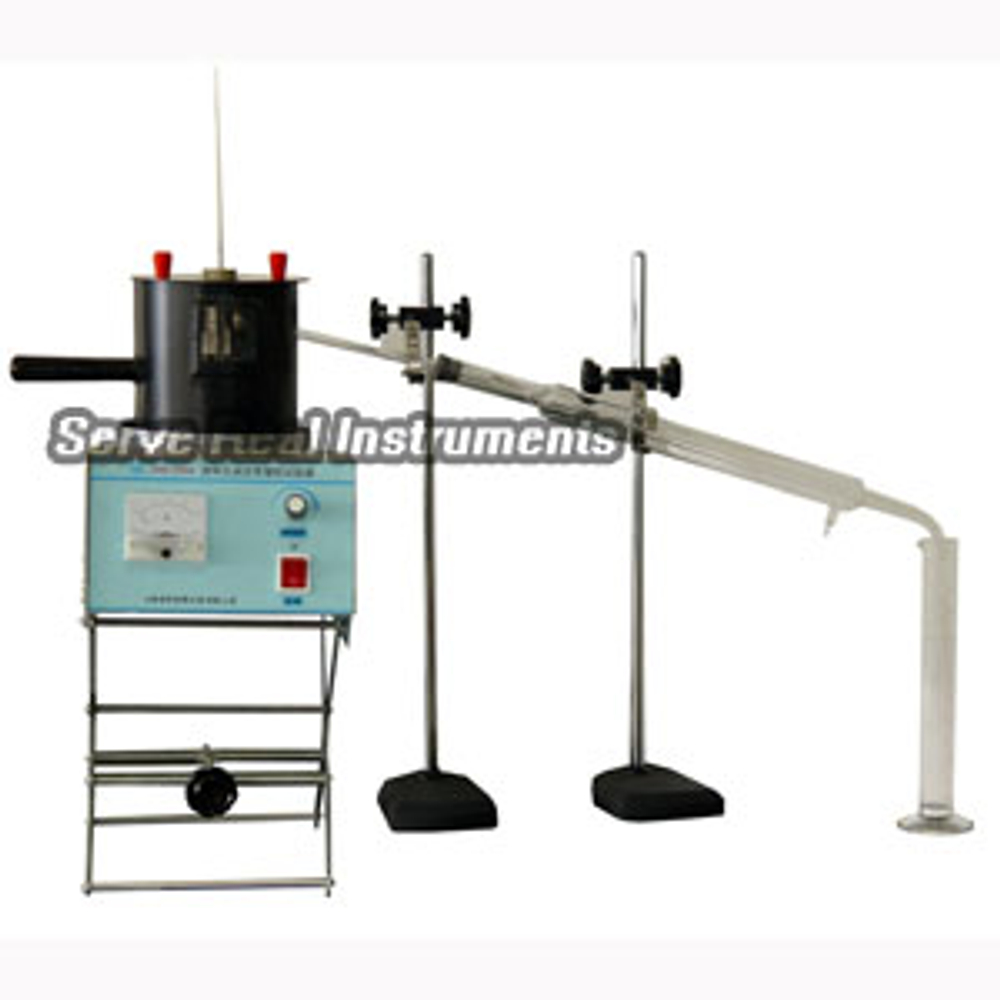

This tester is used to determine the liquid petroleum asphalt distillates content in laboratory.
Main technical features
1. Integration lifting structure, easy lift and descend adjustment of heating furnace;
2. Electric pressure regulation technology of heating furnace, continuous and stepless regulation on heating power.
Technical specifications
1. Power supply: AC(220±10%)V, 50Hz;
2. Flask shield: made by steel sheet, rectangular observe window on black plating flask cover;
3. Distillation flask: hardened glass, 500 degree C heat resistance. Ball dia. 102mm±2.0mm;
4. Thermometer: 0℃~360℃, resolution 1 degree C;
5. Condenser and supporter: 2pcs Dia. 12.5mm±0.5mm glass tube, supported by two frame;
6. Heating temperature regulator: 1000W/220V, rate adjustable;
7. Measuring Cylinder: 100ml/0.5ml;
8. Electric oven gasket: Carbon silicon made, outer dia. 105 mm, inner dia. 50mm, 30mm;
9. Ambient temperature: -10℃~+35℃;
10. Relative humidity: ≤85%;
11. Total consumption: ≤1100W;
13. Overall size(mm): 310×220×450.
