Standards: JTG/T F81-01-2004
Model: PIT-810E
Description

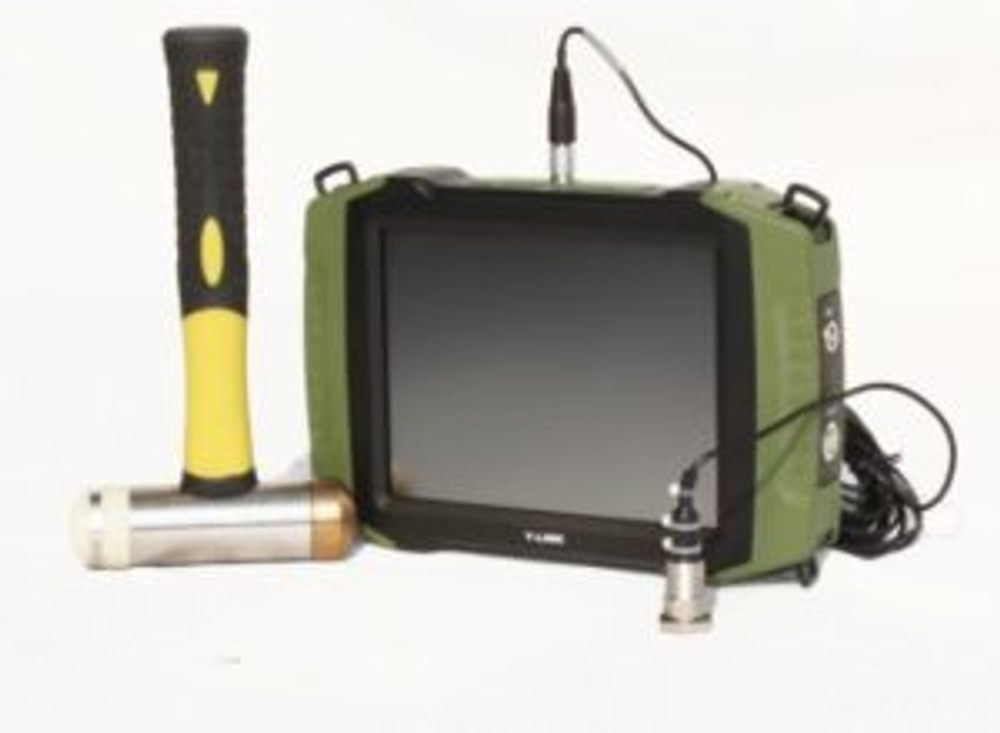

This low strain pile integrity testers uses reflection wave method to detect the integrity of pile foundation to determine the extent and location of pile defects. It can be used to test pours and piles. It can also be used to test structures exposed on the top (such as piers, etc.). It’s equipped with GPS, 4G internal storage, IP65 protection degree.
Configurations
Main machine
Acceleration transducer
Hammer
Carrying case
Technical specifications
| Control unit | Low power embedded industrial processor |
| Display | 8.4 “ TFT LCD (resolution:800x 600) |
| Storage capacity | 8G |
| Power mode | Rechargeable lithium battery≥8 hours |
| Operation Mode | Touch screen |
| Data transfer mode | USB2.0 |
| Sampling interval | 5μs ~ 200μs |
| Record size | 1024 points |
| Sampling resolution | 24-bit A/D |
| Signal bandwidth | 5Hz~12kHz |
| System noise | ＜20μv |
| Dynamic range | ≥100dB |
| Channel | 1 |
| Sensor | Piezoelectric accelerometer/Speedometer |
| Operation temperature | -20℃ ～ +55℃ |
| Dimension | 266 x 180 x 50 mm |
| Weight | About 1.9 kg |
