Applications

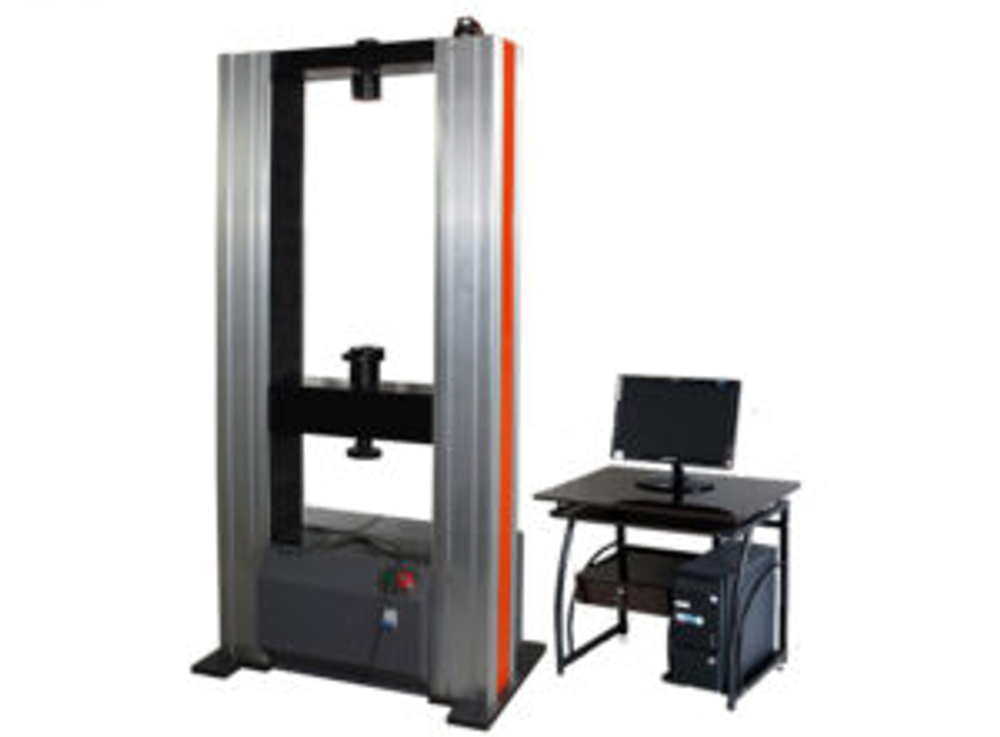

This testing machine is specially used for testing the mechanical strength of various kinds of man-made boards. Provided with suitable fixtures and jigs, it can be used for strength testing of tensile, compression, bending, split, internal-bonding, screw anchoring, elastic modulus, static bending.
Features
1) Special data processing software, human-machine dialogue is intuitive and convenient;
2) Real-time display of test curves and parameters;
3) Automatically obtain tensile strength, shear strength, static bending strength, elastic modulus, surface bonding strength, internal bonding strength, and other mechanical properties test results.
4) The limit position of the displacement can be set up, and when the operation reaches the limit, the protection stops;
5) With automatic reset and automatic return function;
6) Stepless speed regulation in the range of test speed 0.01～500mm/min:
7) Multiple sensors can be calibrated to meet the test of materials with different loads, so that one machine can be used for multiple purposes.
Specifications
| Model | ETM-BC10 | ETM-BC20 | ETM-BC50 | ETM-BC100 |
| Maximum test force | 10KN | 20KN | 50KN | 100kN |
| Functions | Shearing, bonding | Compression, shearing | Screw-anchoring | Bending, tensile |
| Measuring range | 2％～100％F.S（ 0.4%-100% optional） | |||
| Test force accuracy | ±1％（±0.5% optional） | |||
| Test speed | 0.01-500mm/min, stepless adjustable | |||
| Speed accuracy | ±1％ | |||
| Stretch space | 600mm(maximum 1200mm optional) | |||
| Dimensions mm | 660×420 x1700 | 660 x420 x1700 | 840 x600 x1850 | 840 x600 x1850 |
| Weight | 500kg | 500kg | 650kg | 750kg |
