Model: SY-2
Introduction
The purpose to use potassium ion in drilling liquids is to stabilize the shale and restrain the expansive clay. The SY-2 model manual centrifuge is used for content determination of potassium ion in the drilling liquid filter liquor when the potassium ion concentration is higher than 5000mg/l,or the KCI concentration is higher than3.5lb/bbl. Use perchlorate to precipitate the potassium ion in centrifuge tube, then measure the sediment volume and can obtain the potassium ion content on the standard curve. It’s kind of common drilling liquids testing instrument.
Technical specifications
Working rotation speed: constant 1800rpm
Test tube: 10ml centrifuge kolmer
Components

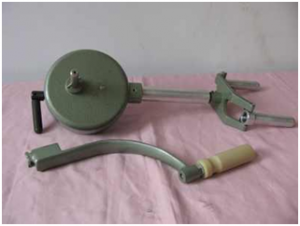

The manual centrifuge is comprised of cover, gear, handle, test tube holder, body clamping device
Please check the below detailed form
| No. | Encode | Name | Qty |
| 1 | SY-2-01-0 | Clamping Deive | 1 |
| 2 | SY-2-02 | Gap | 1 |
| 3 | SY-2-03 | Large Gear | 1 |
| 4 | SY-2-04 | Polish Rod Long Shaft | 1 |
| 5 | Workbench | 1 | |
| 6 | SY-2-05 | Small Gear | 1 |
| 7 | SY-2-06 | Gear Column | 1 |
| 8 | SY-2-07 | Large Cone Gear | 1 |
| 9 | SY-2-08 | Shaft | 1 |
| 10 | SY-2-09 | Small Cone Gear | 1 |
| 11 | SY-2-10 | Jacket | 1 |
| 12 | SY-2-11 | Sleeve | 1 |
| 13 | GB61700 | Bearing | 1 |
| 14 | SY-2-12-3 | Test Tube | 2 |
| 15 | GB818-85 | Half-Round Head Screw M5×6 | 2 |
| 16 | SY-2-12-1 | Clip | 2 |
| 17 | Kolmer | 10ml Centrifuge Test Tube | 2 |
| 18 | SY-2-12 | Test Tube Stand | 1 |
| 19 | SY-2-14 | Base Plate | 1 |
| 20 | SY-2-15 | Stop Pin | 1 |
| 21 | SY-2-19 | Handle | 1 |
