Description

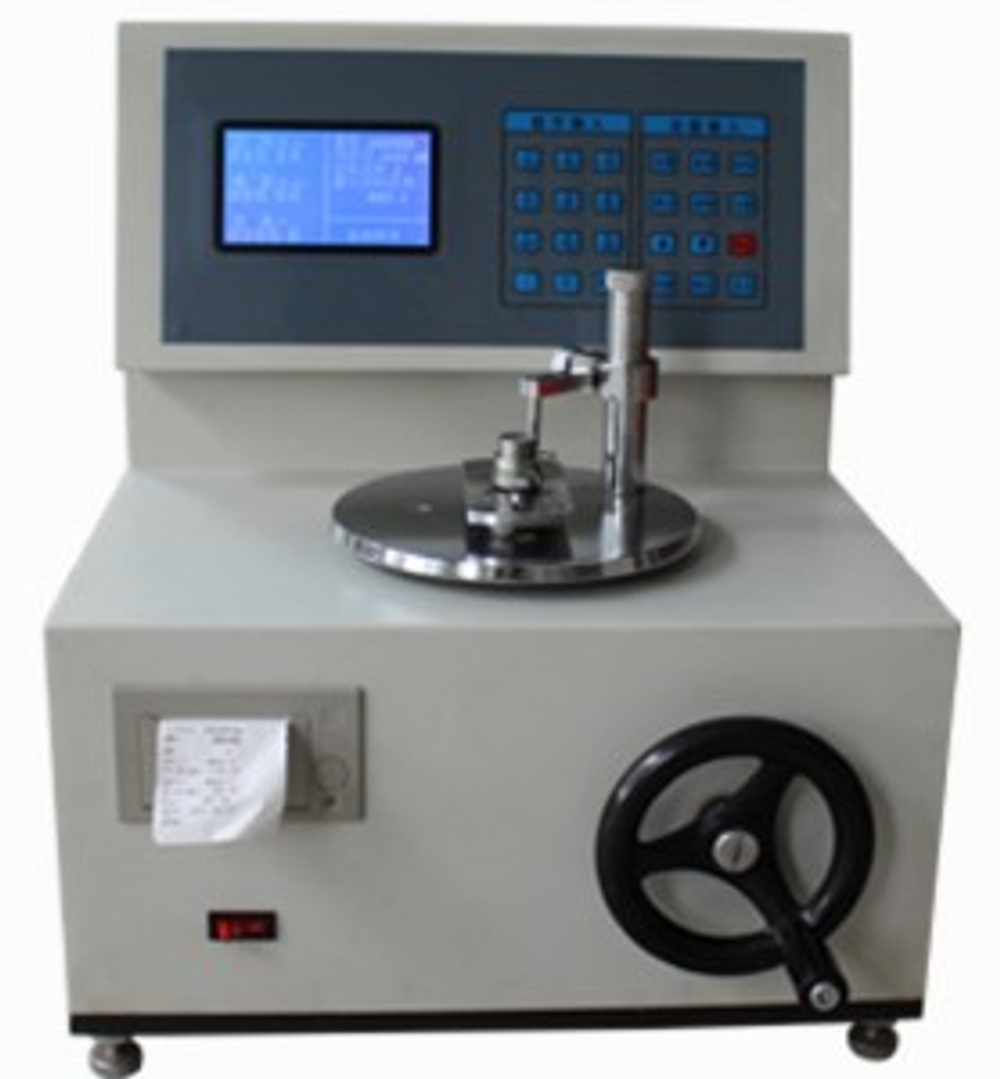

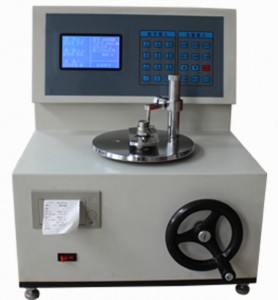

It’s manual type spring testing machine, it can test the torsion angle, torsion, torque of multi kinds of springs.
Standards: GB/T9370-1999, JJG269-2006,ISO,JIS,ASTM,JIN
Features
Mainly to test the torsion, torque, torsion angle, stiffness of various kinds of springs. If equipped with special fixtures, it also can test the torque resistance of other parts.
Easy operation, rapid test
Peak value maintain, stiffness calculation, overload alarm, data query and print;
Preset test parameters, manually rotate to reach the preset parameters then will indicate results, can rotate in left or right
Torque and torsion angle reset at any point.
Technical specifications
| Model | TNZ-50L | TNZ-100L | TNZ-200L | TNZ-500L | TNZ-1000L |
| Test load range | 0-50N.mm | 0-100N.mm | 0-200N.mm | 0-500N.mm | 0-1000N.mm |
| Test accuracy | 0.001N.mm | 0.01N.mm | 0.1N.mm | ||
| Min. Angle value | 0.1°/0.01° | ||||
| Max. Angle | 0±9999.99° | ||||
| Torsion spring vertical clamping length | ≤100mm | ||||
| Rotary plate diameter | 150mm | ||||
| Machine accuracy | ±1%, ±0.5% | ||||
| Control mode | Parameters preset, manually loading, test data output | ||||
| Overload protection | Programmable alarm | ||||
| Machine weight | 42kg | ||||
| Power supply | Ac 220v±10% / 50hz | ||||
| Overall size | 550×460×465（mm） | ||||
| Main configurations | |||||
| Main machine | 1set
| ||||
| Control system | 1set | ||||
| Load cell | 1pc | ||||
| Micro printer | 1set | ||||
| Rotary platen | 1pc | ||||
| Files | User’s manual, packing list, calibration report, quality certificate | ||||
