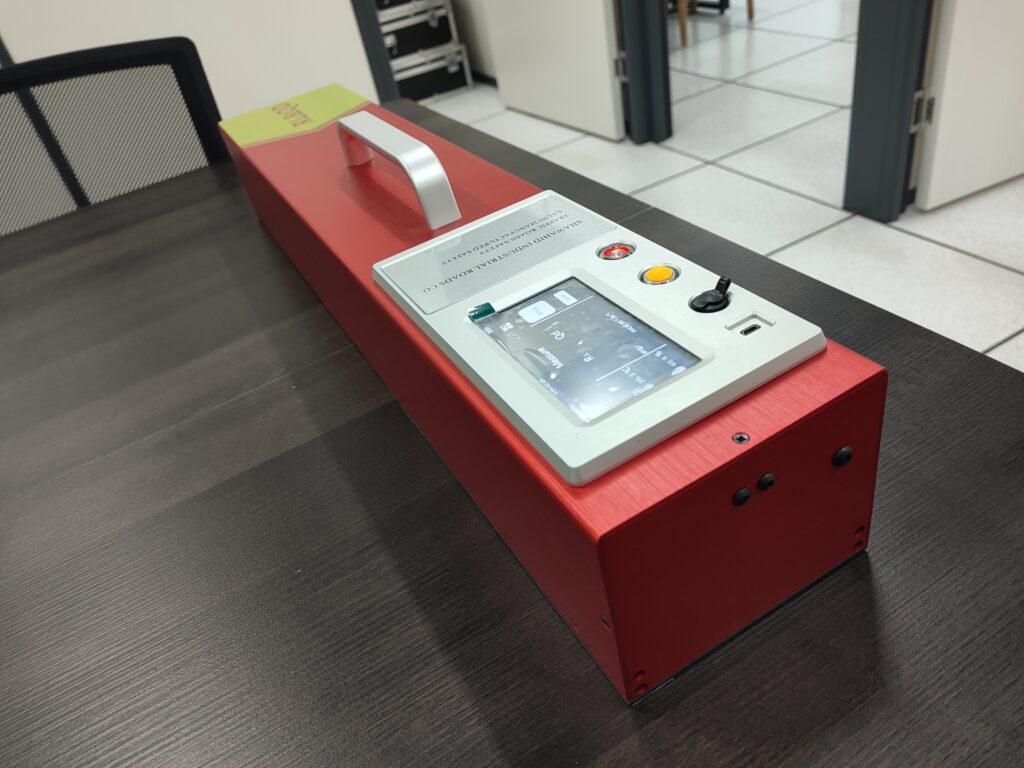

Marking line retroreflectometer(Qd/RL)

Model: JT-BX05

This retroreflectometer can measure both the luminous retroreflection coefficient R_L at night and the daytime visibility Q_d. It is applicable either in laboratory or field. It is a common road traffic test instrument.

Functions & Features

Fast measurement, support hot melt marking and oscillating marking pavement detection;

Simple calibration procedure;

Large battery capacity, long standby, and fast charging;

High brightness LCD transparent touch screen, which can clearly see the operation interface under light;

Average value of multiple measurements;

Storage of more than 99999 pieces of detection data information, including measurement data, operators, road section information and detection time;

Support 16G SD card data storage, and support data storage in Excel form, which can be exported to the computer through the U disk function;

Real time voice broadcast of measurement data;

Lock the field test data and print the test results directly through the printer;

Touch keyboard is used to input Chinese characters, English characters;

Real time display of site temperature and humidity;

English menu operation mode can be opened to facilitate its use;

Support intelligent standby management, and the system will automatically enter the sleep state when there is no operation;

Under the same on-site measurement environment, all colors can be calibrated at one time before testing, without having to calibrate different colors before each measurement.

Detectable color markings (optional)

GPS function(optional)
