Model: MD-8
Application

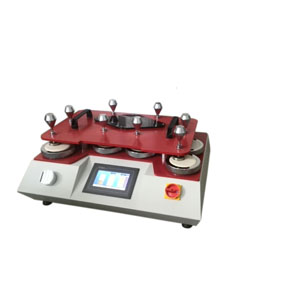

The Martindale abrasion tester is used to test the abrasion resistance and fuzzing degree of fabrics and synthetic leather under pressure.
Features
Nice appearance, LCD display, easy operation
Dual calculation mode, 6 station sync test
Two kinds of Lissajous movement locus, 24mm×24mm, 60.5mm×60.5mm
No need for move the cover when loading/unloading sample
Abrasion and fuzzing sync test
LCD display
6 station independent calculation, freely single station lock
Specifications
Station number: 8
Timing range: 0~999999
Max stroke: crosswise 60±0.5mm, longitudinal 24±0.5mm
Pressure material weight:
A. Gripper/ 198±2g
B. Sample hammer/395±2g
C. Furnishings sample hammer/595±2g
Abrasive block effective friction diameter
A model 200g( 1.96n), abrasive head 9kpa, φ28.8 －0.084mm
Relative moving speed between clamper and abrasive platform: 50±2r/min, 47±2r/min
Pressure hammer weight: 2385g±10g
Overall dimension: 985×750×450mm
Power supply: AC 220v , 50hz, 500w
Net weight: 150kg
