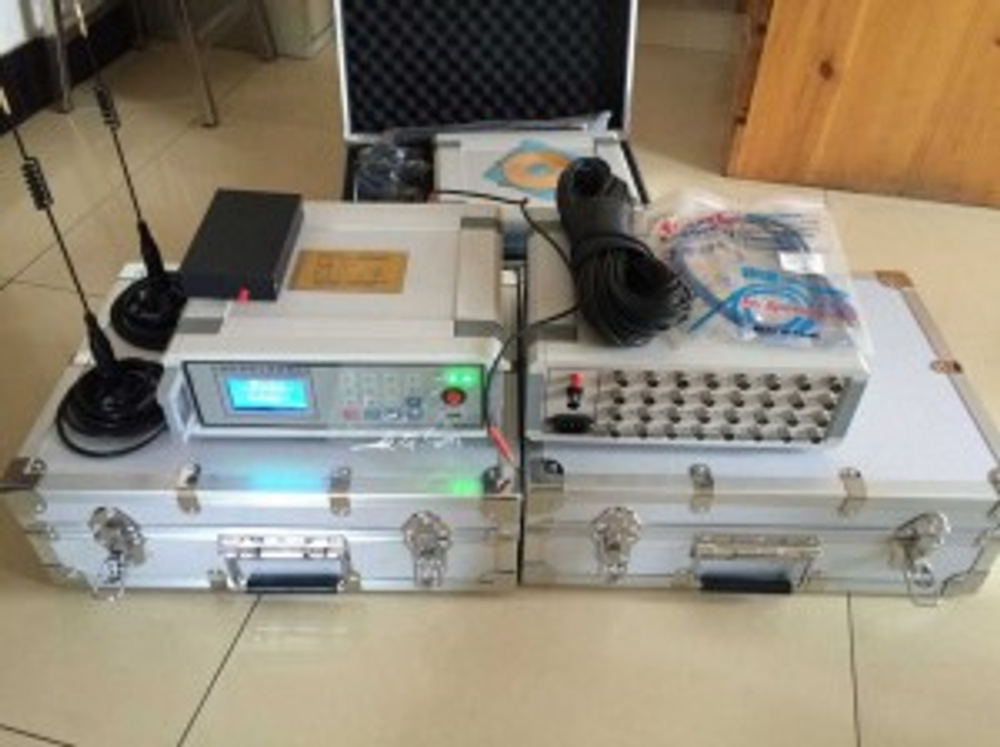

Model: HTS-2000
Description
This equipment is used to monitor the mass concrete temperature in real time. Wireless communication enable long distance real time monitor, one equipment can connect with up to 32 thermo sensors in a same time. One computer can connect with up to 10sets equipments in a same time, thus can monitor 320 units temperature data in a same time.
Technical Specifications
| Temperature measuring range | -50-120 |
| Operation ambient temperature | 20-60 |
| Temperature measuring channel number | 32 |
| Sensor cable max length | 50m |
| Power supply | AC 220v, 50Hz, spare power DC 5V |
| Communication mode | Wireless LAN communication |
| Monitoring frequency | 1-99min, free set |
| Temperature accuracy | 0.5 |
| Wireless communication distance | 2km-8km |
Standard Configuration
Wireless monitoring Main machine
Transmitter
Receiver
Thermo-couple wire sensor
English application software
computer(self-contained)
