Model: MBV-2
Standards: EN933-9/1999
Description

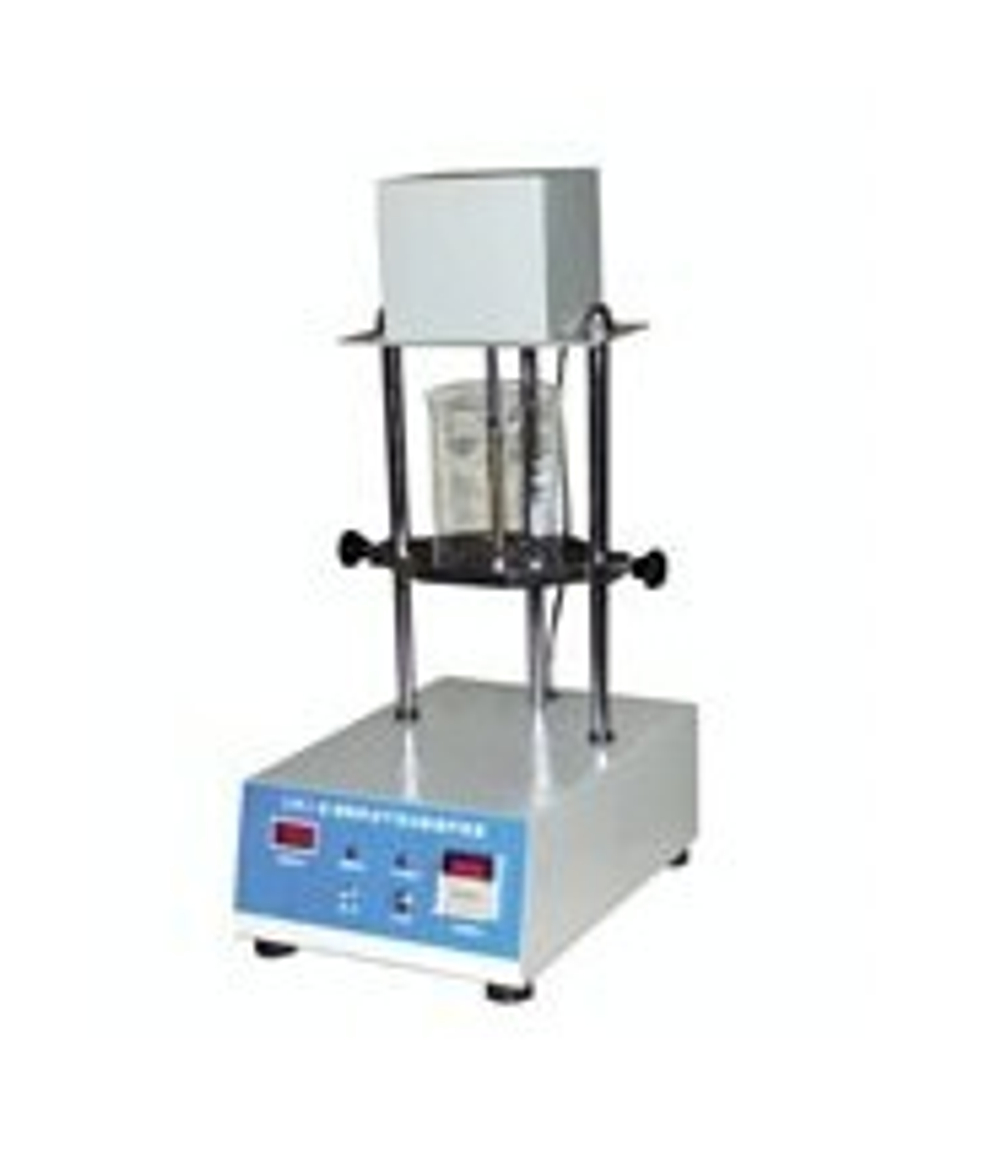

The Methylene blue value (MBV) test set is used to determine the swelling clay content in fine aggregates thus to evaluate the aggregate cleanliness degree. This test is suitable for aggregate size less than 2.36mm or 0.15mm, when the 0.075mm sieving test through rate less than 3%, then no need to perform this test.
Technical specifications
Power supply: AC 220V, 50/60hz
Max rotation speed: 600±10 RPM
Minimum rotation speed: 400±10 rpm
Vane diameter: 75mm±10mm
Vane number: 4pcs
Overall dimension: 300x200x600mm
Net weight: 15kg
Power: 400W
Standard configurations
High Speed Agitator Motor, 400/600 r.p.m
Stirring Propeller, Ø 70 mm 4 flanks
Filter Paper, 1 pack (100 pcs.), 125 mm dia, 95 g/m2, 0.20 mm thickness
Glass Burette, 50 ml x 0.1 ml
Burette Holder and Stand
Plastic Beaker, 1000 ml
Glass Rod, Ø 8×300 mm
Methylene Blue, 100 g
Kaolinite, 500 g
Auxiliary equipments for Fine aggregate methylene blue test
- Methylene blue purity >=98.5%
- Pipette 5ml, 2ml one each
- Electric stirrer, rotation speed adjustable, 600±60rpm, vane number 3 or 4, vane dia. 75±10mm;
- Forced air drying oven controlled temperature 105±5 degree c
- Electric balance: 1000g/0.1g, 100g/0.01g
- Standard sieve 0.075mm, 0.15mm, 2.36mm square hole, one each
- Container depth over 250mm
- Glass volumetric flask 1000ml, stop watch accurate to 1s, glass rod 300*8mm(l*dia.) 2pcs, thermometer accurate to 1 degree c, flask 1000ml, others quantitative filer paper, enameled tray, brush, clean water
