Standards: GB/T4340.2, ISO6507-2, ASTM E384
Model: HVSZ-1000(Automatic measurement system)
General description

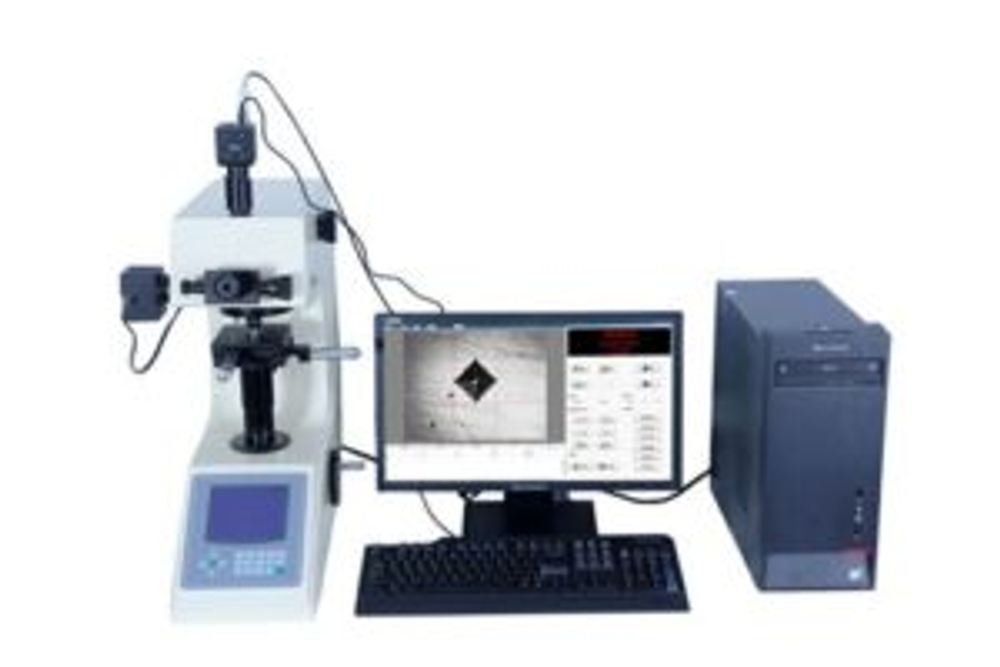

This hardness tester integrates durometer and computer automatic measurement system together via CCD camera, the whole test procedure can be done through keyboard and mouse operation, easy and high accuracy, can avoid human-operation deviation to delivery the best measuring performance.
Applicable materials
- Ferrous metals, non-ferrous metals, IC flakes, surface coating, laminated metal;
- Glass, ceramics, agate, precious stones, thin plastics, etc.;
- Carburized layer and hardened layer depth and gradient hardness test.
- Parallel planes and micro parts and ultra-thin parts.
Technical specifications
1. Measuring range: 5-5000HV
2. Test load: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N
(10,25,50,100,200,300,500,1000gf)
3. Optical measuring system
Objective: 10×, 40×
Total amplification times: 100×, 400×
Measuring range: 200μm
Graduation: 0.025μm
4. XY coordinate platform
Dimension: 100×100mm
Stroke: 25×25mm
Graduation: 0.01mm
5. Others
Overall dimension: 530×290×490mm
Sample max allowed height: 120mm
Indenter to wall space: 110mm
Power supply: AC 220V/50HZ
Net weight: 40kg
