Model: MJ-F610
Introduction

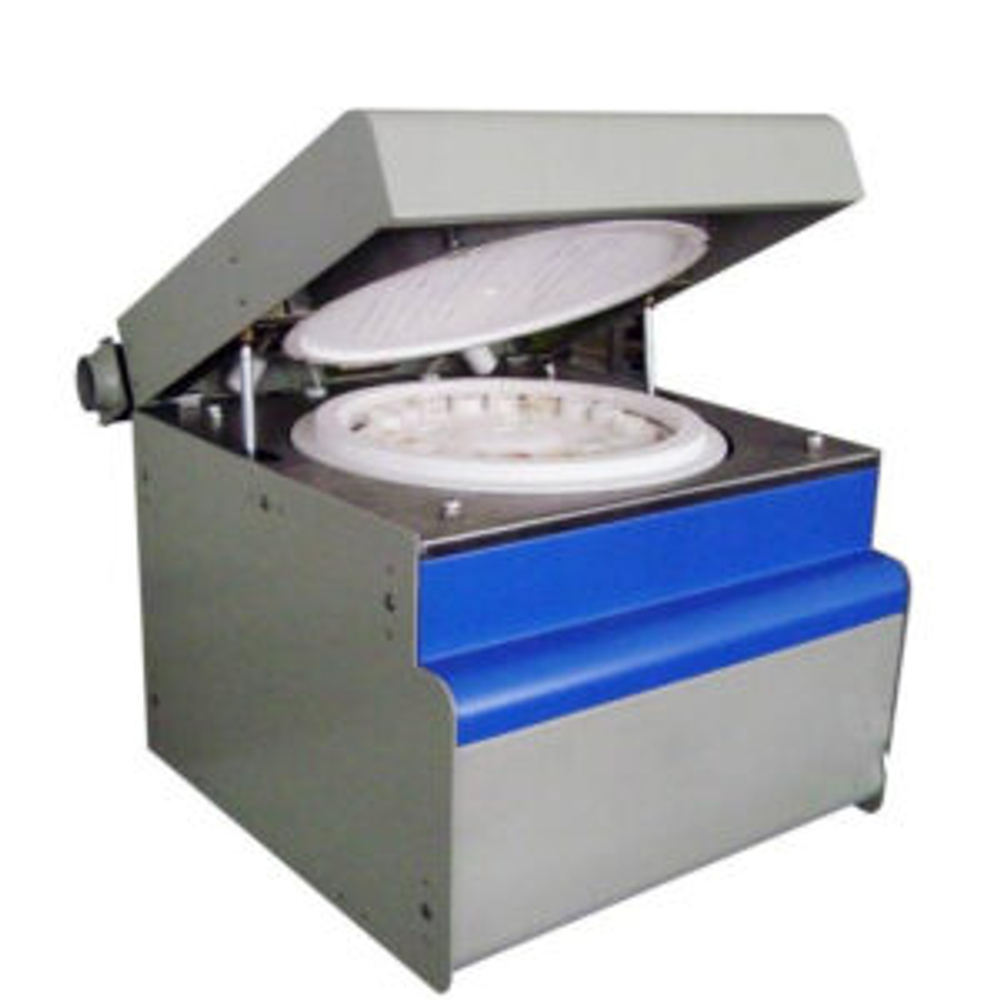

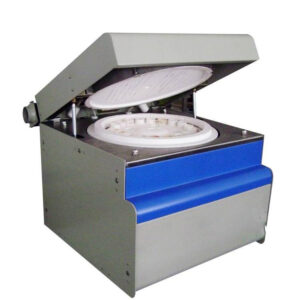

This analyzer can simultaneously test the moisture, ash and volatile content of coal or coke samples. The moisture, ash, and volatile content can be measured independently or in a same time. Adopting Imported furnace, fast heating speed, energy saving, shorter test time is, maximum 19 samples can be measured at a time. Can adopting quick and classic method.
Features
- High automation: After placing the sample, can automatically complete the test and print the result, easier operation.
- high accuracy, completely meets the GB/T212 standard.
- High efficiency: 19 samples of water, ash, volatile content ≤120min (612 type) ≤180min (610 type) Classic method: 19 samples of water (dryness test), ash (slow ash + dry Sex test) 260min, volatile matter 120min (Type 612)
- The moisture, ash and volatile content can be determined in any combination or individually.
- Imported integral furnace is adopted, features fast heating speed, energy saving and shorter test time.
- Imported electronic balance and imported stepping motor are used to ensure stable test performance.
Technical specifications
| Power | ≤ 5kw |
| Gas requirements | oxygen: purity 99.5%, pressure 0.1Mpa after decompression, nitrogen: purity 99.5%, pressure 0.1Mpa after decompression, pressure reducer: high 0~25Mpa, low 0~0.4Mpa |
| Number of crucibles | 20 |
| Batch test capacity | 19 samples |
| Sample quality
| 0.6~1.1g of moisture and ash sample (quality can be adjusted); volatile content of 0.9~1.1g |
| Furnace temperature range | room temperature~1000℃ |
| Analysis accuracy | meet the standard requirements of GB/T212-2001 “Industrial Analysis of Coal” |
| Dimensions | 605X605X630mm |
