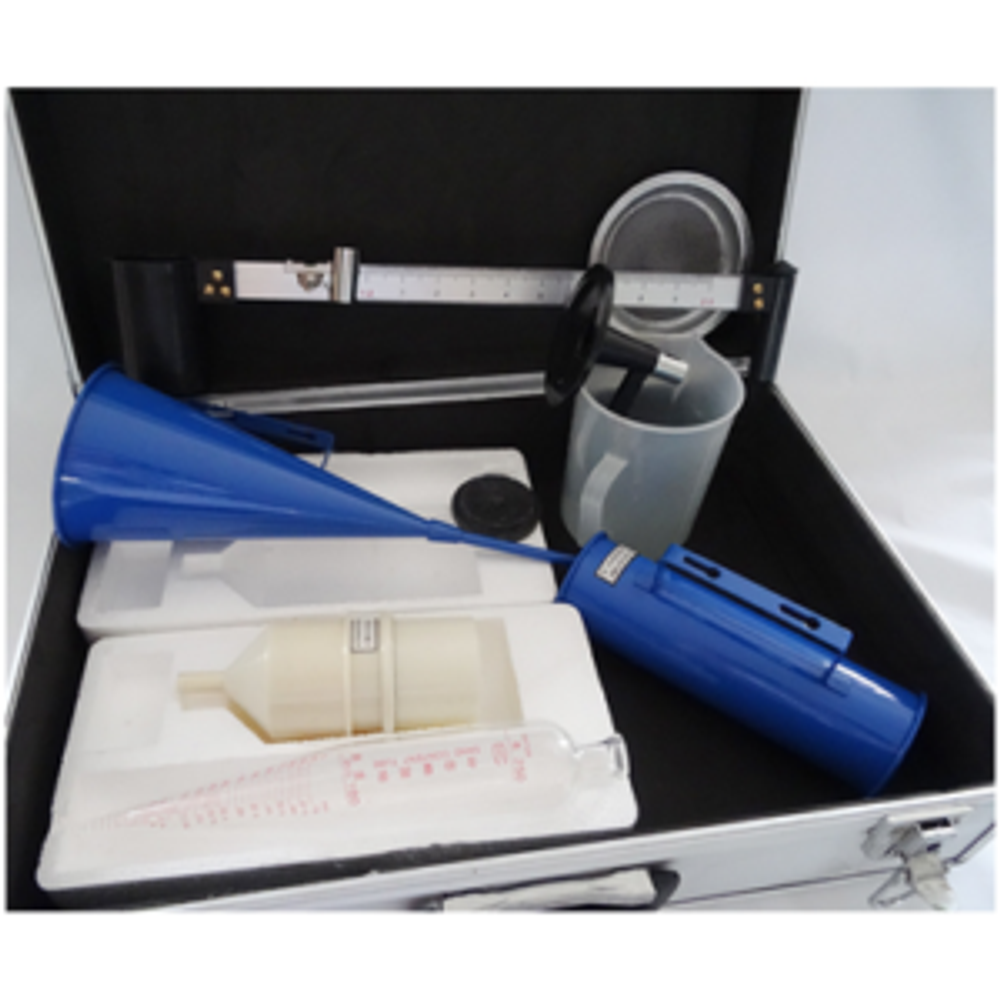

Application
- The slurry hydrometer is used to measure the slurry weight either in filed and lab, the unit is g/mm3
- The 1006 slurry viscometer is used to measure the drilling liquid slurry viscometer either in field or lab, it test the viscosity by measuring the time needed for flow out 500ml slurry, the unit is second.
- The drilling liquids sand content means the percentage of sand that diameter is lager than 0.074mm.The sand content determination set is kind of simple, reliable, accurate measuring set to determine the sand content in the drilling liquids, it uses filter screen method to determine the sand content.
Technical specifications
| Item | Term | Spec. |
| Slurry hydrometer | Measuring range | 0.96~3g/cm3 |
| Measuring accuracy | 0.01g/cm3 | |
| Slurry cup capacity | 140cm3 | |
| Overall dimension | 500×100×100mm(l*w*h) | |
| 1006 Slurry viscometer | Tube size | 5mm*100mm(Dia*length) |
| Water time | 15±0.5s | |
| Measuring cylinder capacity | 500ml/200ml(two end) | |
| Total weight | 2.5kg | |
| Sand content set | Filter screen diameter | 0.074mm(200mesh) |
| Glass cylinder capacity | 100ml | |
| Sand content | 0~20% |
