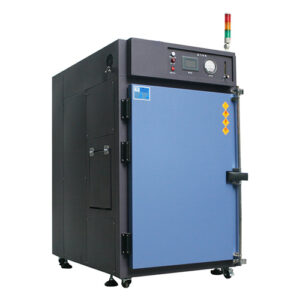

The vacuum nitrogen drying oven is applicable for industries such as touch screen, wafer, LED, PCB board, ITO glass and precision electronics.
Features
Controller: Digital display controller or touch screen programmable controller.
Hot wind circulation heating: within 30mins can reach 200℃
Glass wool insulation, enclosure temperature won’t over room temperature by 10℃
Specifications
| Model | DHGN-072 | DHGN-270 | DHGN-480 | DHGN-720 | DHGN-720 | DHGN-1000 |
| Liner size | 40×45×40 | 60×90×50 | 80×100×60 | 100×100×60 | 100×120×60 | 100×100×100 |
| W×H×D (cm) | ||||||
| Overall size | Customized | |||||
| W×H×D (cm) | ||||||
| Temperature range | Room temperature+25℃~200℃（300℃） | |||||
| Vacuum degree | Normal pressure~-98KPa | |||||
| Temperature fluctuation | ±0.3℃ | |||||
| Temperature resolution | 0.1℃ | |||||
| Nitrogen concentration | 0-1500PPHM | |||||
| Temperature rise time | 30min | |||||
| Enclosure material | Cold rolled plate + baking paint | |||||
| Liner material | 5.0mm thickness SUS#304 plate | |||||
| Insulation material | Glass wool | |||||
| Circulation system | Heat dispersion fan | |||||
| Heater | SUS made, high speed | |||||
| Control system | Ternary controller | |||||
| Nitrogen system | Flow meter, pressure difference meter, oxygen analyzer | |||||
| Vacuum system | Vacuum pump equipped | |||||
| Accessories | Control status indicator, shelve(2pcs, height adjustable) | |||||
| Safety device | Over heat protection break, overload protection, overload indicator | |||||
| Power supply | AC 3Ψ 380V 60/50Hz | |||||
| Customized service | Yes | |||||
