Standards complaince: ASTM D6780
Model: SDG-200
Description

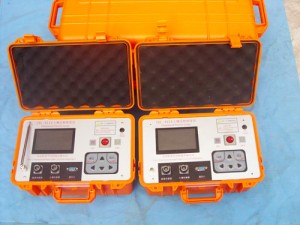

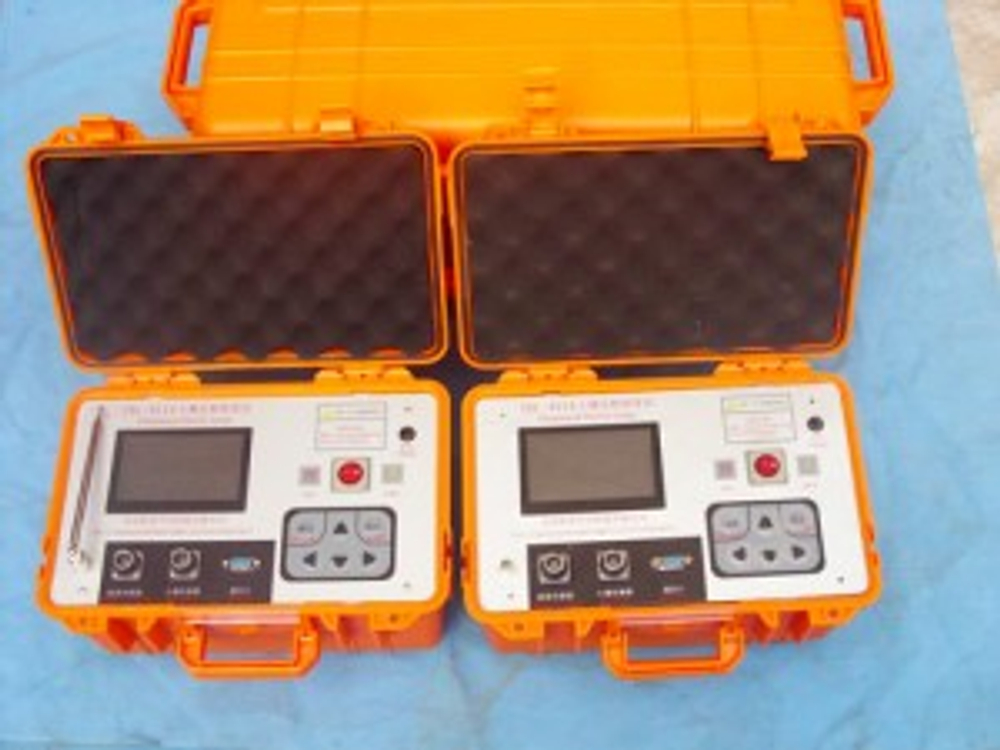

The non-nuclear density moisture meter is used to test the density and moisture of the following: Dike and filler, underpass, basement and foundation, backfill, conduit, rubbish. It’s kind of very common soil testing instrument used in field.
Features
1. Totally replace the nuclear, sand replacement, drying method, no nuclear.
2. Easy operation, even non-professional operator can use it.
3. No special requirement on transport.
4. Friendly user interface, easy in operation.
5. Fast, reliable, portable, stable, accurate, good repeatability
6 Adopt high reliable point to point RF technology.
7. Testing results can be displayed within 2-3 mins.
8. English language menu, easy for operation.
Technical specifications
1. Moisture range: standard compacted soil field range
2. Dry density accuracy: ≤3% of standard test
3. Humidity range: standard compacted soil field range
4.Humidity measuring accuracy: ≤2% of standard test
5.Operation ambient temperature: 0-50°C
6. Operation ambient humidity: 5-90%
7. Power supply: 12V, 4.0Ah plumbic acid rechargeable battery
8. Battery continuous working period: 24hours for one complete charging.
9. Control console Overall size: 343mmx305mmx152mm
10. Net weight: 5kgs of controller, 1.8kg of accessories
