Model: SY-7305
Introduction

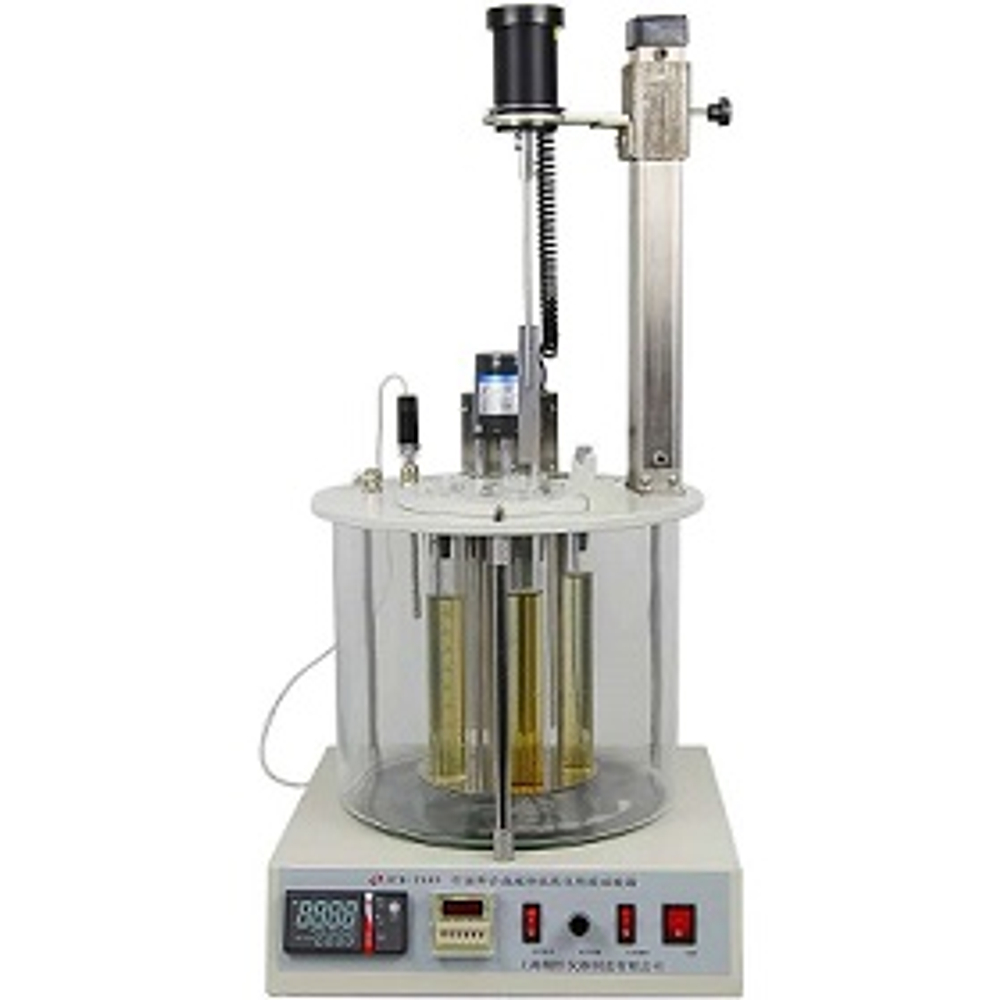

This instrument is used to determine the water separation ability of oil and synthetic fluids. It is designed and manufactured according to standard GB/T 7305 and ASTM 1401.
Features
This instrument adopts a small cylinder desktop structure, which has advantages of small volume, easy operation, beautiful appearance and so on.
Motor is adopted to automatically stir inside bath and working temperature is even. There are five specimen holes on bathtub cover for five specimens to be tested in turn at the same time.
Specimen stirring device is easy to lift and lower, and stirring shaft is well concentrically in test tube, which will never shake or touch test tube wall.
Technical Specifications
1. Power Supply: AC220V±10%, 50Hz.
2. Temperature Control Range: room temperature to 99.9℃ (can equip our ZL-1 portable refrigerator if required to control temperature below room temperature).
3. Temperature Control Accuracy: ±1℃.
4. Temperature Resolution: 0.1℃.
5. Temperature Display Mode: digital display.
6. Time Control Range: 1s- 9min and 59s. Time Setting Mode: dial setting controls time.
8. Time Display Mode: digital display.
9. Stirring Speed: 1500±15r/min.
10. Temperature Control Heating Power: 1000W.
11. Environment Temperature: room temperature to 35 °C.
12. Relative Humidity: ≤85%.
13. Power Consumption of Whole Machine: no more than 1200W.
