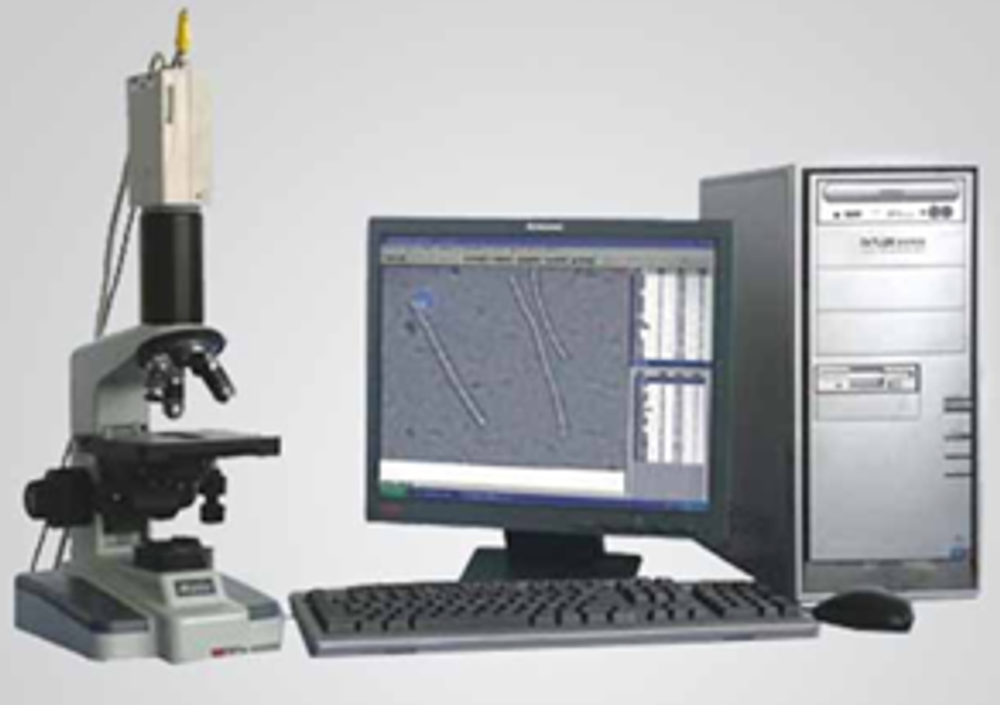

Optical fiber diameter analyzer AATCC 20A

Model: FZ-002

The optical fiber diameter analyzer has below functions: analyze the circular section of a fiber, measure the diameter of a filament or fiber, the measure the fineness of a fiber, calculate of the percentage of the content of various components in a blended fiber or in a blended yarn.

Standards

AATCC 20A FZ/T01057.3, ISO 137, IWTO-8

Technical specifications

Working mode:

manual measurement, automatic measurement, multi-point measurement;

Automatic statistical analysis, report printing, photo printing

2. Instrument structure: computer, industrial camera, microscope, printer

3. Measurement range: 0-300 um

4. Measurement accuracy: 0. 1 um

5. Power: AC220V 50Hz, 300W

6. External dimensions: 700×440×550

7. Net weight: 15kg
