Model: CT-CL
Description

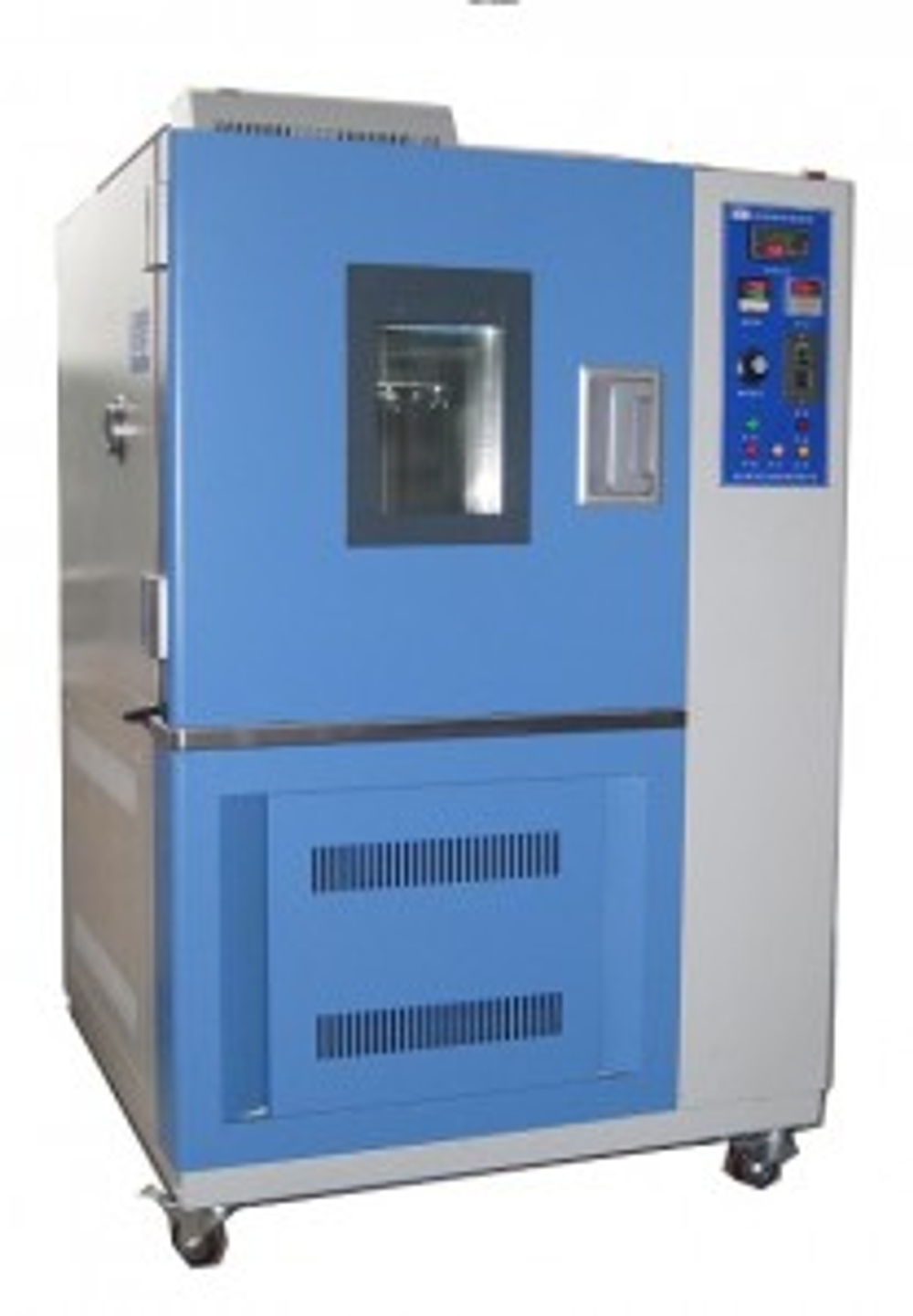

The Ozone aging testing chamber is used to test the Ozone aging resistance of vulcanized rubber, thermalplastic rubber, cable insulated jacket, under the condition of static tensile or continuous dynamic stretch deformation, or alternative of them, meanwhile with constant Ozone concentration and temperature. The Ozone aging resistance is evaluated through the clap on the surface or other characteristics variation, it’s kind of common environmental test equipment.
Technical Specifications
| Temperature range | RT+10~60 degree c |
| Temp. Uniformity | ≤2 degree c |
| Temperature fluctuation | ±0.5 degree c |
| Temp. Deviation | ≤±2 degree c |
| Temperature raise rate | 0.7-1.0 /min |
| Time setting range | 0~999.9 hrs |
| Ozone concentration | 0~1000PPHM |
| Ozone concentration deviation | ±10% |
| Gas flow rate | 8-16mm/S |
| Sample frame rotation speed | (20-25)mm/S(adjustable) clamp elongation rate:5%～35% |
| Working condition | |
| Ambient temperature(degree c) | 5＋28 (average temperature within 24hrs ≤28 |
| Ambient humidity | ≤ 85% |
| Power supply | AC220/380( ±10%)V/50HZ |
