Model:ETTC-10S
Standards
ISO4624, ASTM D4541, ASTM D7234
GB5210-1985-T《 the adhesion test method of coatings-pull off method》
GB16777-2008 《 the testing method of Building waterproof coating》
GB/T5210-2006《 the adhesion test of paint and varnish-pull off method》;

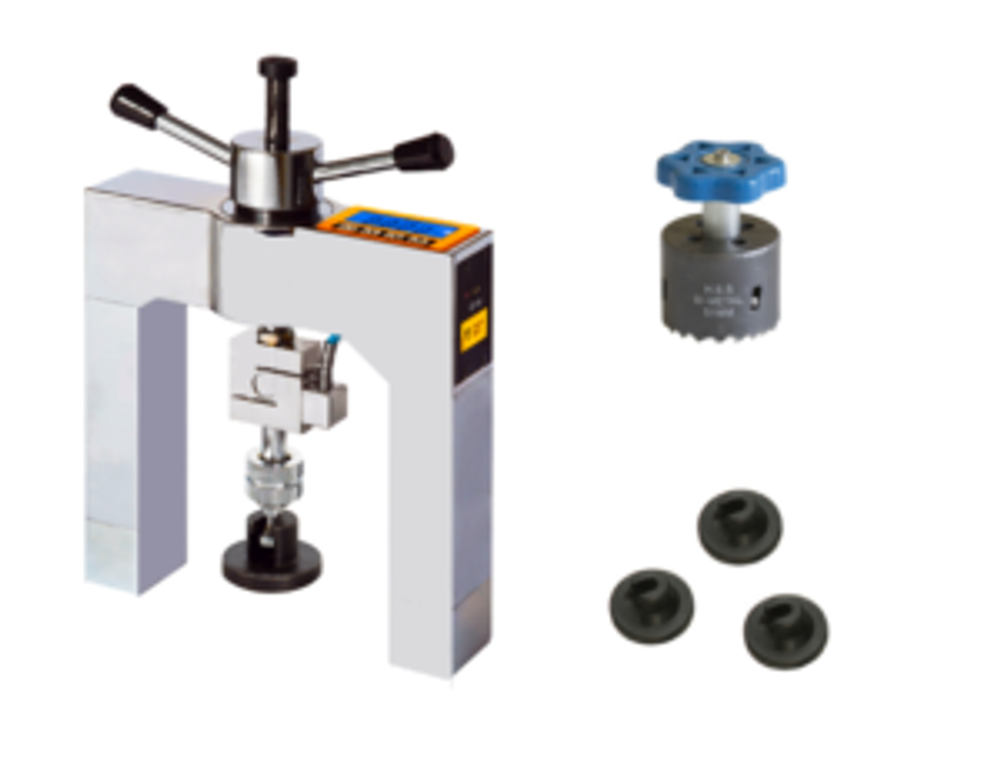

The coating adhesion tester is used to test the coating adhesive strength on construction materials, it adopts uni-body design, the tester comprised of test standard, load cell, handle, screw rod, pressure gauge. Main body made of light alloy material, light in weight, easy operation. it’s a common construction non destructive test equipment.
Features
Unibody design
Peak maintain
Can store up to 500 pcs data
10 segment curve correction
Automatic power off under
Technical specifications
| Measuring range | 0-10.000KN |
| Indicating resolution | 0.001KN |
| Measuring unit | KN, Mpa |
| LCD, peak maintain | Yes |
| Data storage | 500 units |
| Data correction | 10 segment |
| Power mode | Lithium battery |
| Pull stroke | 65mm |
| Machine material | Light alloy |
| Net weight | 2.8Kg |
Standard accessories
- Power adapter
- Spindle 50mm, 10pcs(20mm and 40×40mm optional)
- Hole drill kit
- Metal Carrying case
- Glue
