Standards: BS EN 12600
Model: JC-EN 12600

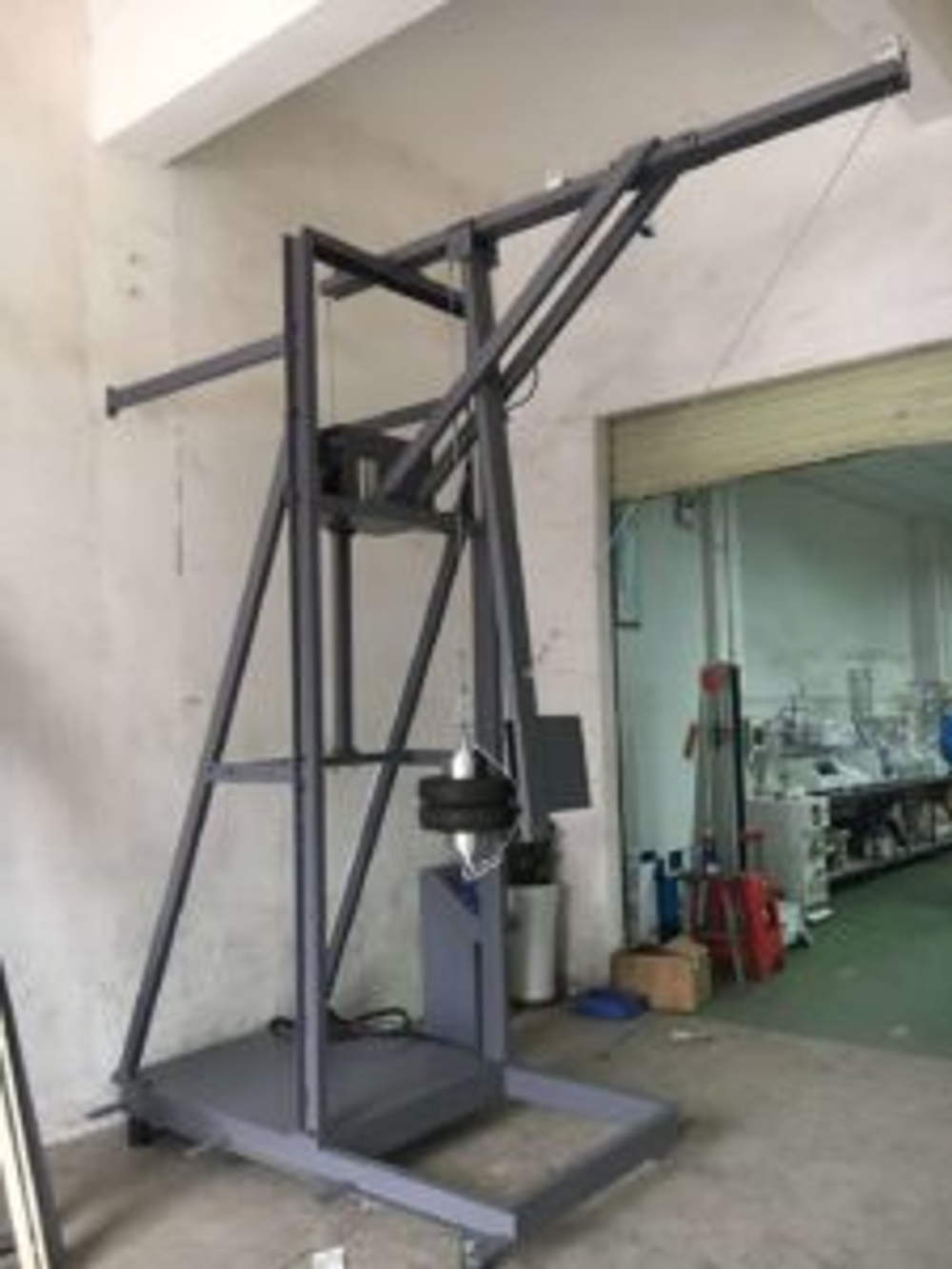

This equipment is used to test the impact strength of building glass material under EN 12600 standard, dual tyre type impactor body, adjustable drop height, controlled test.
Technical specifications
| Impactor height | 190,450,1200mm |
| Impactor | dual tyre with metal cylinder in center |
| Controller | Button |
| Main frame | 100mm channel steel |
| Swing arm radius | 1524mm |
| Impactor weight | 50kg±0.1kg |
| Impactor pressure | 350±20kpa |
| Impactor tyre | 3.50-R8 4PR, round sectional and flat longitudinal tyre surface(see fig. 1) |
| Impact height difference | 0-30mm |
| Glass sample dimension | w(1938±2*h（876±2mm) |
| Sample holding frame internal dimension | H1910±5xw847±5mm |
| Rubber strip dimension | Width:20±2mm,thickness:10±1mm hardness: 60±5irhd |
| Steel strand dia. | 5mm±0.1mm |
| Steel strand rope length | ≥1524mm |
| Height measuring unit | Height rod |
| Tyre tripping mode | Automatic |
| Fixing mode | Foundation bolt fixing |
| Machine overall dimension | W1200±5×l1800±5×h2900±5mm |
| Net weight | 680kg |
| Power supply | Ac240v,50hz, >2m power cable |
| Frame material | Stainless steel+wood |
