Model: PPA-189
Introduction

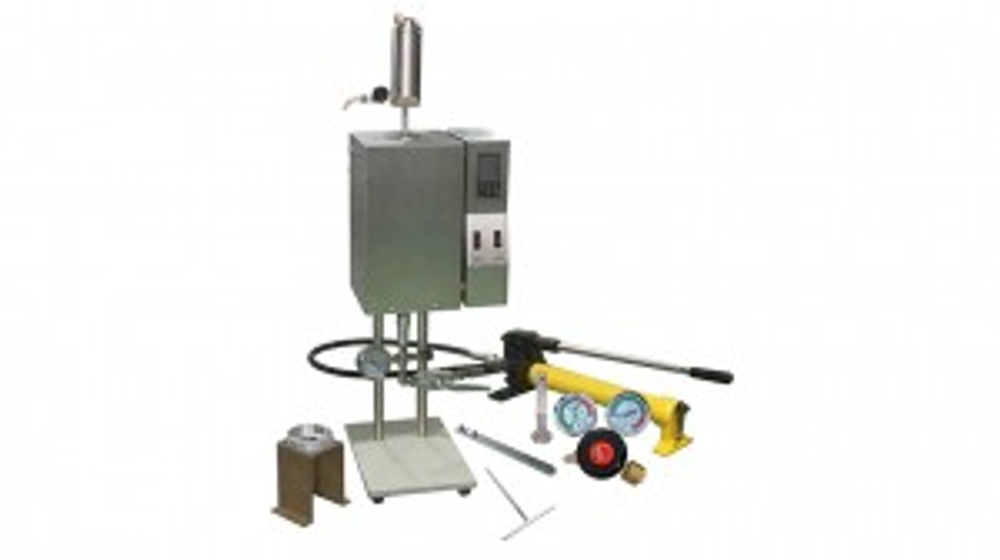

The Permeability Plugging Apparatus(PPA) is a high pressure, high temperature instrument designed to simulate downhole static filtration. The PPA operates at temperatures and pressures that represent well conditions, and the filtration medium is positioned above the sample fluid.
Technical Specifications
| Term | Specification |
| Power supply | AC220V±5%; 50Hz |
| Power | 1KW |
| Working temperature | RT-230℃ |
| Fluids cup working pressure | ≤20mpa |
| Volume | 500ml |
| Effective filtration area | 3.5in2 ( 22.6cm2 ) |
| Oil pressure | Hydraulic oil |
| Air source | N2, CO2 |
| Dimension | 300×280×650/720×440×340 |
| Weight | 48Kg/40Kg |
