Standards: JTG E20-2011 T 0618
Model: LY-0618A
Description

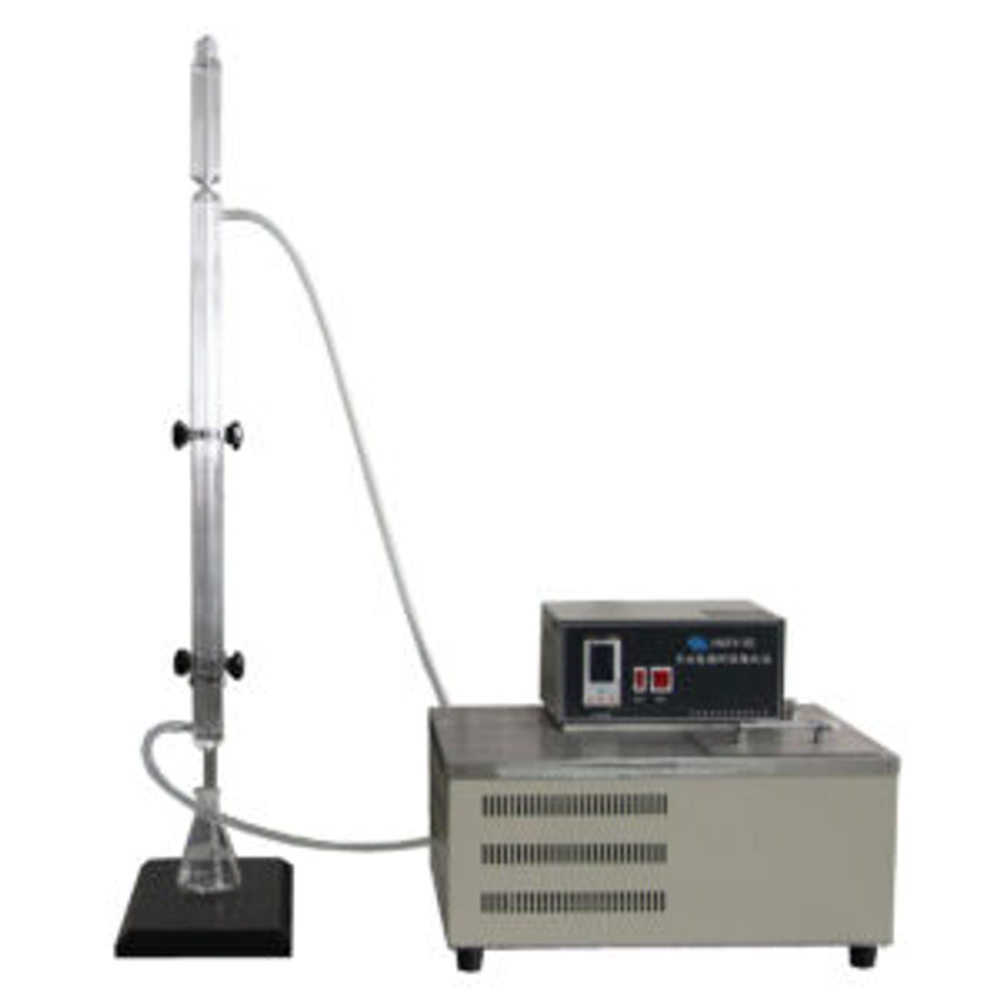

This Petroleum asphalt four components tester is used to determine the saturate, aromatics, of petroleum asphalt, it also can test diesel, fuel oil, lubricant, asphalt and asphaltene.
Technical specifications
a. Heating furnace
1. Heater power: 100W~1000W, stepless regulation;
2.Overall size: 270mm×160mm×115mm
3. Total consumption: ≤1200W
b. Circular constant temperature water bath
1. Volume: 10L
2.Temperature range: -10℃~95℃
3.Temperature accuracy: ±0.2℃
4. Circular water flow: ≥4L/min
5.Overall size: 530mm×400mm×430mm
6.Power consumption: ≤ 1100W
c. Base and column
Base size: 345×210mm
Column height: 1120mm
Main configuration
1. Asphalt extractor: ball type condenser and 100ml extractor
2. Glass adsorption column: outer clamp, circular hot water temperature insulation
3. Cone glass flask: 250mL
4. Measuring cylinder: 20mL, 50mL,100mL
5. Silicon gel: fine hole, grading 0.42-0.15mm (40-100 mesh)
6.Quantitate filter paper: middle speed, Φ110mm~125mm
Main optional accessories
1. Vacuum oven: 267Pa vacuum degree (2mm Hg)
2. High temperature oven: 0℃~1000℃, automatic temperature controller
3. Balance: 120g/0.1mg
