Model:MJ-PC-01

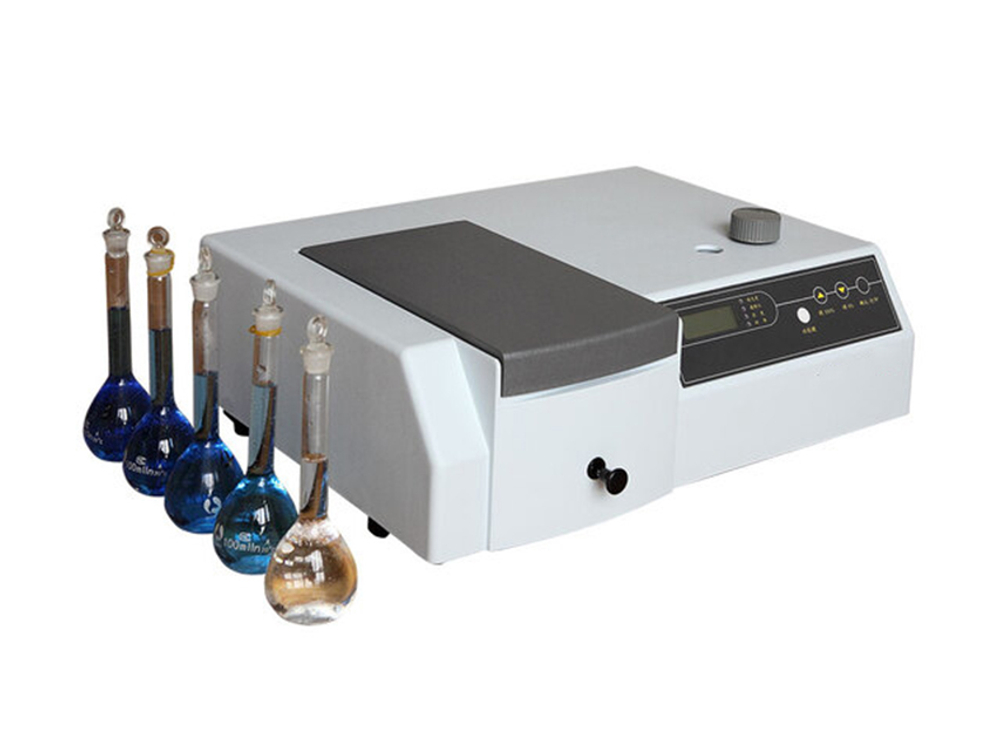

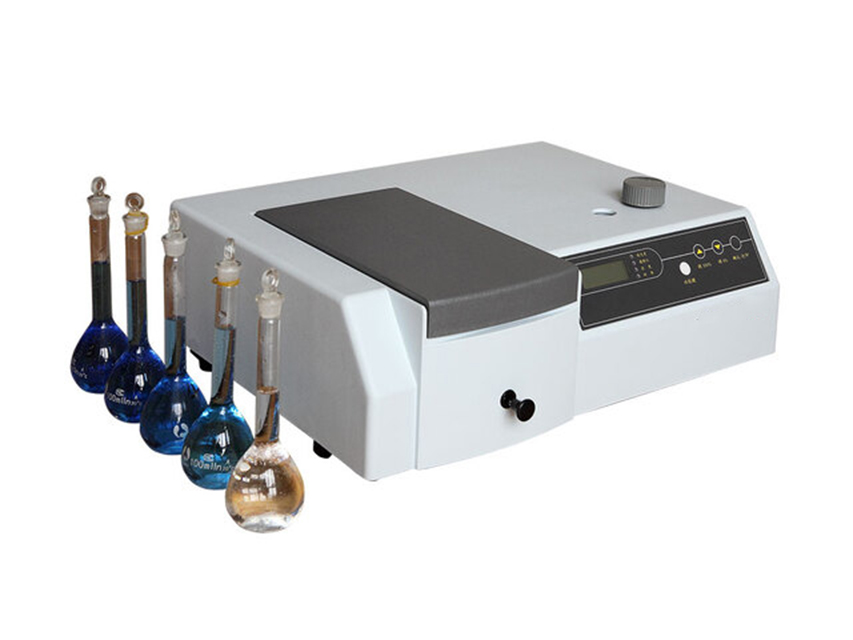

The phosphorus in coal analyzer is a new product designed by our company according to the determination method of phosphorus in coal GB/T 216-2003. Adopts a new optical path design and a 1200/mm high-quality grating. Features low stray light and good monochromaticity.
Features
◎ The phosphorus analyzer in coal is a new product designed by our company according to the determination method of phosphorus in coal GB/T 216-2003. It adopts a new optical path design and a 1200/mm high-quality grating. It has the characteristics of low stray light and good monochromaticity.
◎ The use of single chip microcomputer makes the operation easier, and the adjustment of 0% T and 100% T is only one touch.
◎ Four measurement modes, T, A, C and slope method, make the operation easier.
◎ LCD display is convenient for reading, and the large sample room can expand the function.
◎ It can be equipped with a 100mm cuvette rack, which is more suitable for content analysis in water plants and power plants.
◎ It can be equipped with a printer, and the measured data can be printed and saved more conveniently.
◎ Its excellent stability is suitable for food safety testing and pesticide residue analysis.
◎ The light source is 6V10W imported 2000h long life tungsten halogen lamp
Specifications
| Optical system | Single beam optical path, 1200 diffraction gratings/mm |
| display | LCD |
| Wavelength range | (nm) 340～1000 |
| Light source | Tungsten halogen lamp Tungsten halogen lamp, deuterium lamp |
| Detection element | silicon photocell |
| Spectral bandwidth | 4nm |
| Stray light | ≤0.5%T(360nm) |
| Wavelength accuracy | ±2nm |
| Wavelength repeatability | 1nm |
| Transmittance accuracy | ±1%T |
| Transmission specific gravity renaturation | 0.5%T |
| Stability | Photocurrent ± 0.5% T/3min Dark current ± 0.2% T/3min |
| Transmission measurement range | 0.0%T～125.0%T |
| Absorbance measurement range | -0.301A～1.999A |
| Power Supply | AC220V±22V 52Hz±1Hz |
| Overall dimensions | 475mm×342mm×150mm |
