Pocket vane shear test set ASTM D8121/8121M

Model: TSJ-1M

Standards: ASTM D8121/8121M

Introduction

It’s used to test the shear strength of cohesive soil either in lab or site, more portable and easy to operate.

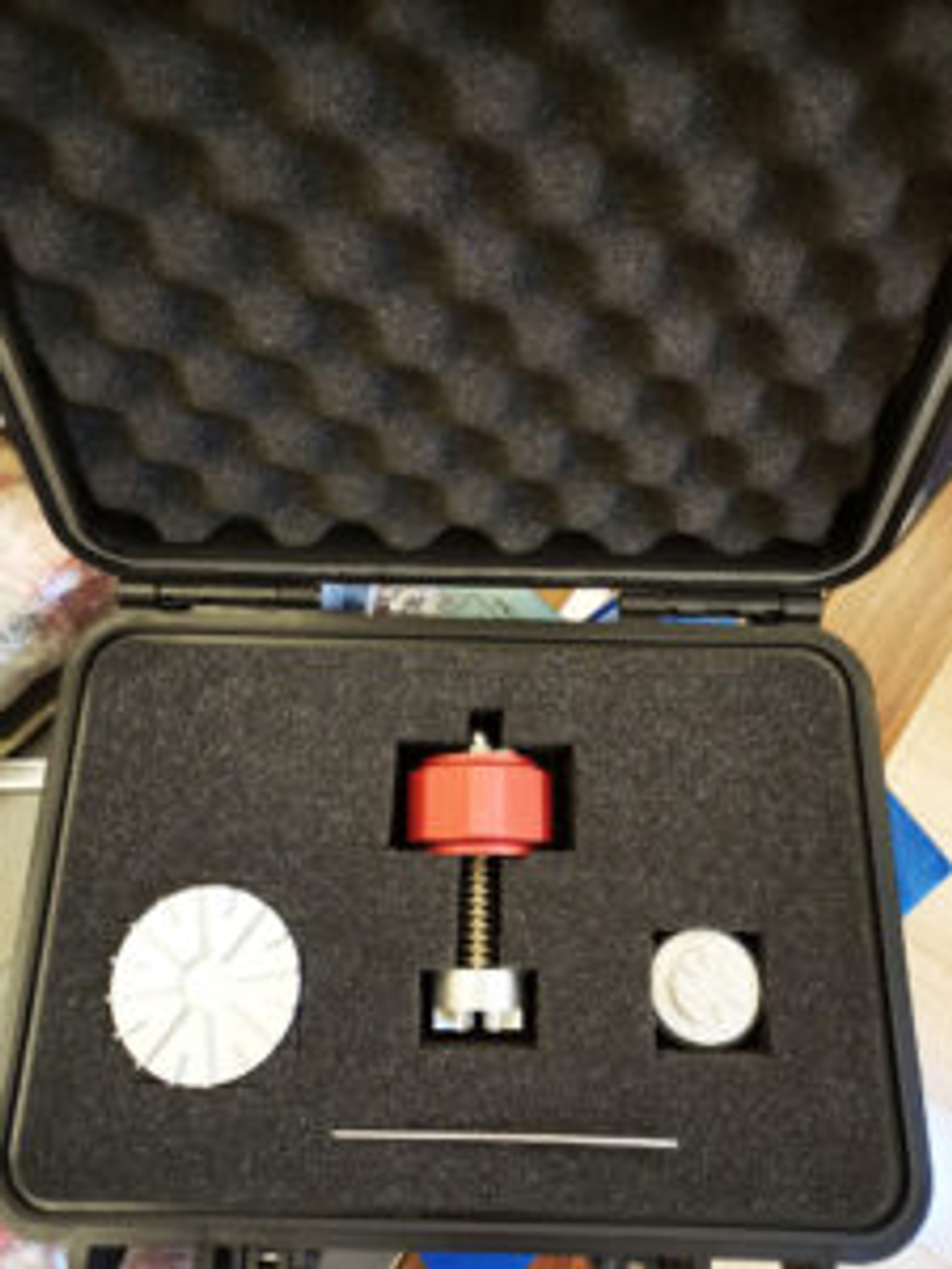

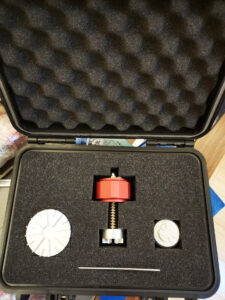

The whole set of instrument consists of 1 spring torsion meter, 3 cross heads of different sizes and 1 allen wrench. Using three different heads, the test range is 0~0.2, 0~1, 0~2.5kg/cm2, the dial scale is divided into 50 scales, and the test accuracy is better than 5%.

Features

1. More Portable with whole set weight around 0.8kg
2. Precision integrated cross board head for longer tooling life
3. All metal structure, durable and cost-effective
4. Separate packing boxes, easy to carry and better protection

Specifications
