Standards: ASTM D256, ISO179,ISO180,GB/T1043,GB/T1843,GB/T13525
Model: CJ-XBL-5.5
Description

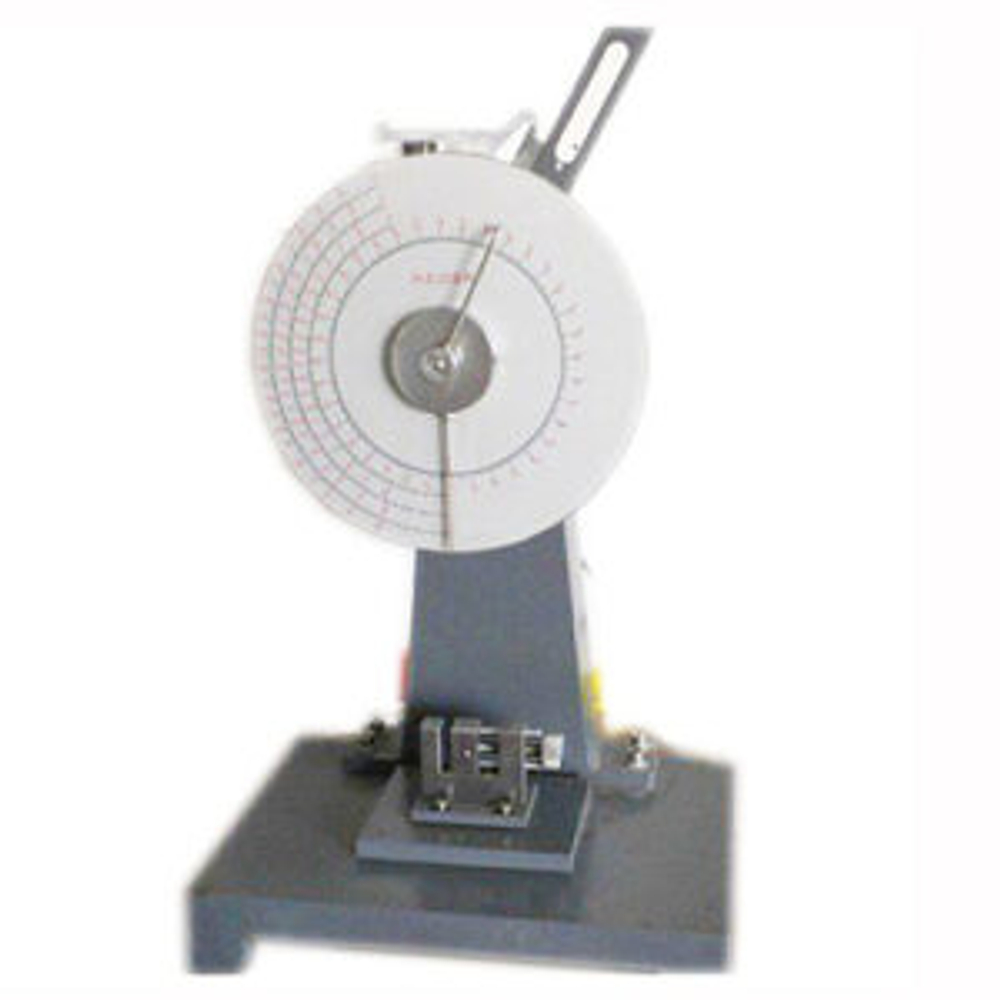

The cantilever beam impact tester is suitable for impact strength test of plastics tube, sheet materials, sectional material, engineering plastics, GRP, ceramic.
Technical Specifications
| Impact power | 1J/2.75J/5.5J |
| Impact rate | 3.5m / s |
| Hammer lift angle | 150° |
| Pendulum shaft to sample center distance | 335mm |
| Impact blade to clamp distance | 22mm |
| Impact blade size | R2-2.5 mm |
| Sample span | 40mm,60mm,70mm,95mm |
| Sample dimension | (3-10)×15×120,(4-12.7)×12.7×55mm |
| Overall dimension | 600*400*850(mm) |
| Net weight | 65kg |
