Description

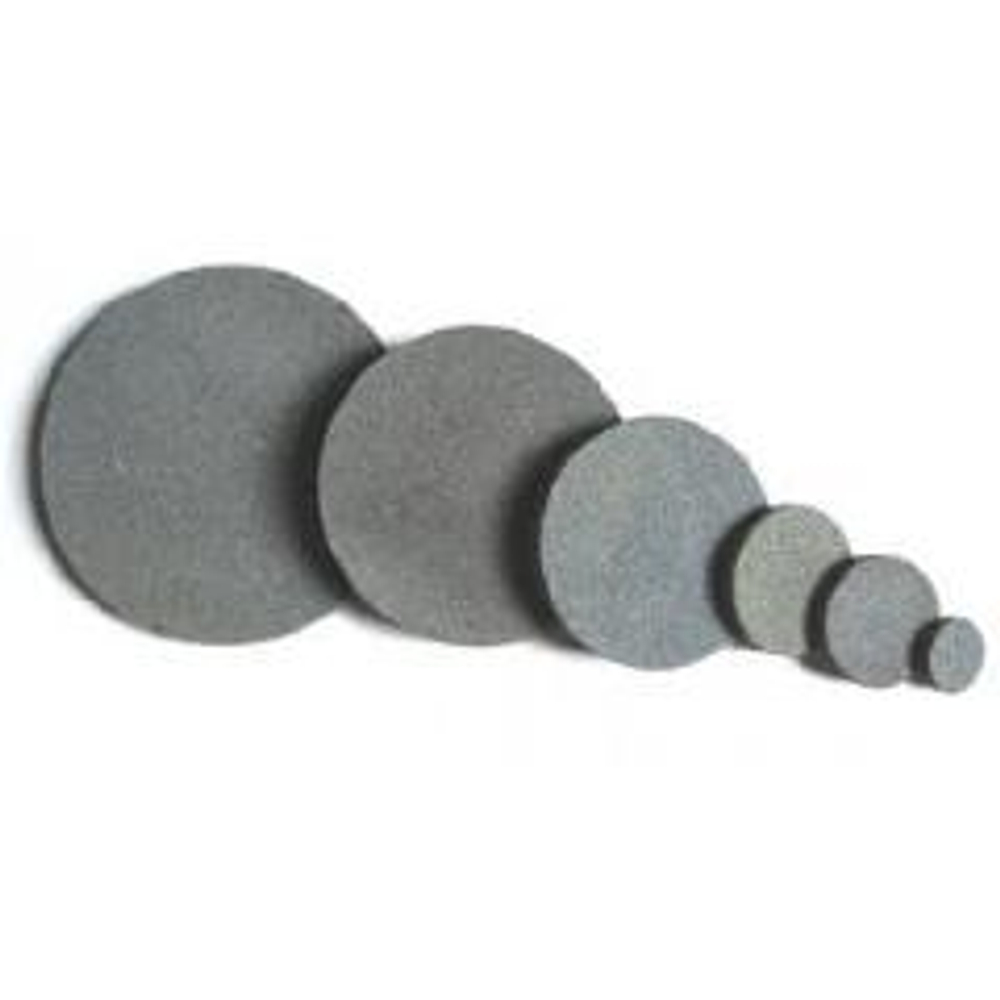

The porous stones are used for soil test in laboratory, it can be used for triaxial test, consolidation test, direct shear test.
Technical Specifications
1. Dia. 39.1×5mm for triaxial tester
2. Dia. 44×5mm for triaxial tester
3. Dia. 61.8×10mm for triaxial tester, saturation device, permeameter
4. Dia. 79.8×10mm for folded type saturation device, consolidation machine, direct shear tester
5. Dia. 83×10mm for folded type saturation device, consolidation machine
6. Dia. 110×10mm for triaxial tester
Below size can be tailor made(>50pcs)
Round type:
12×5mm; 28×5mm; 28×10mm; 38×5mm; 38×10mm; 44×5mm;
50×10mm; 63.2×6.4mm; 61.8×12.7mm; 70×10mm; 90×10mm; 95×10mm; 100×10mm; 105×10mm; 110×10mm; 150×10mm; 200×12mm; 280×20mm
Square type：151×151×10mm,100×100×8mm, 100×100×10mm, 60×60×8mm
