Model: MLS

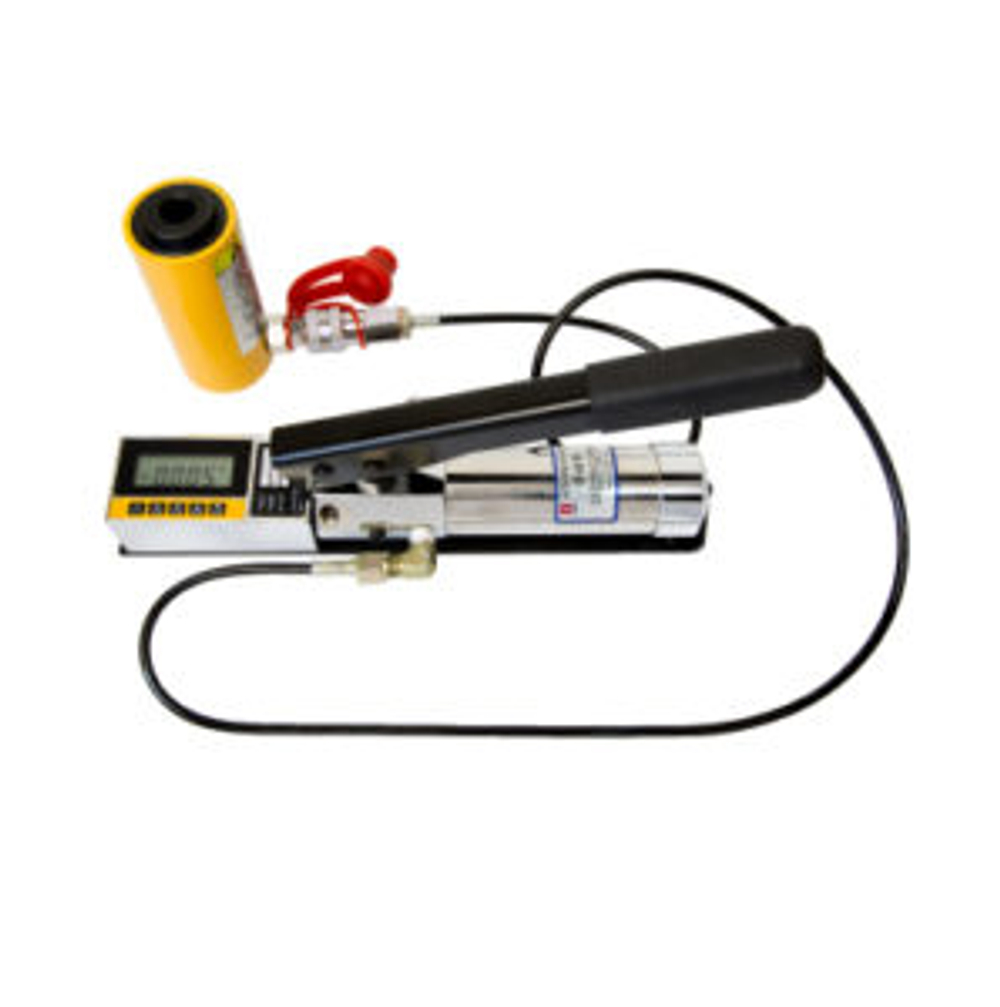

It’s a portable anchor bolt pull out tester which can be used to test the anchoring strength of anchoring rods, steel rod, expansion bolts and other anchoring device.
Features
LCD display with backlight
Peak maintain
Can store up to 200 units data
Overload protection device guarantee no damage to oil cylinder when no load.
Technical specifications
| Oil cylinder center hole | 18mm |
| Oil cylinder stroke | 50mm |
| Measuring range | 0-10kn, 0-30kn, 0-50kn |
| Load min readout | 0.001kn |
| Weight | Manual pump 2kg, oil cylinder 2kg, total weight 7kg |
| Common anchorage device | Φ6-12 |
| Test accuracy | ±1% |
Standard configuration
Manual pump, oil cylinder, anchorage device Ø6- Ø12, pull rod, USB cable, Aluminum case
