Model: BHR-300
Description

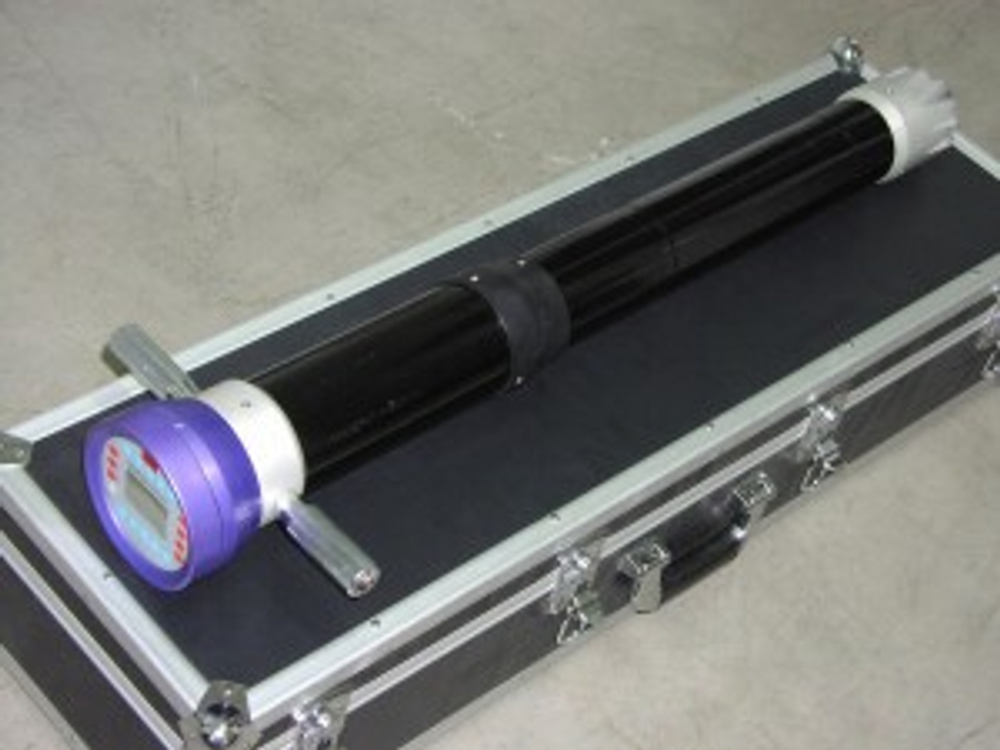

The portable ash & GCV tester is used to test the coal quality, it’s kind of very common coal testing equipment.
Applications
Coal mine for real time coal quality monitoring
Coal enterprise to monitor the transportation
Power plant, paper factory, cement plant, coking plant, fertilizer plant and other using coal enterprise to monitor the coal quality
Coal interchange station, port to monitor the coal quality
Insitu coal quality inspection on car, train, coal dump
Technical Specifications
| Display mode | Large LCD display | |
| Display parameters | Car number, ash, calorific value, measuring time, group number, average calorific value | |
| Battery | Panasonic, SANYO high capacity professional battery, can continuous work for 65hours | |
| Applications | Various kinds of coal | |
| Calibration method | As per different coal type or by similar type | |
| Accuracy | When ash content ≤20%, error ＜1%ash | |
| When ash content ≤30% , error＜1.5%ash | ||
| When ash content≤40% , error＜2%ash | ||
| When ash content≤50%, error＜2.5%ash | ||
| Interface | Serial port, Bluetooth, large power wireless(optional, max 4.5KM distance) | |
| Per test time | Max 30s | |
| Working environment | -10-40 degree C | |
| Overall size | 75*866mm(Dia.*L) | |
| Net weight | 4.5kg | |
| Storage capacity | 9000 groups, 3000 cars(each car 3 units information) | |
