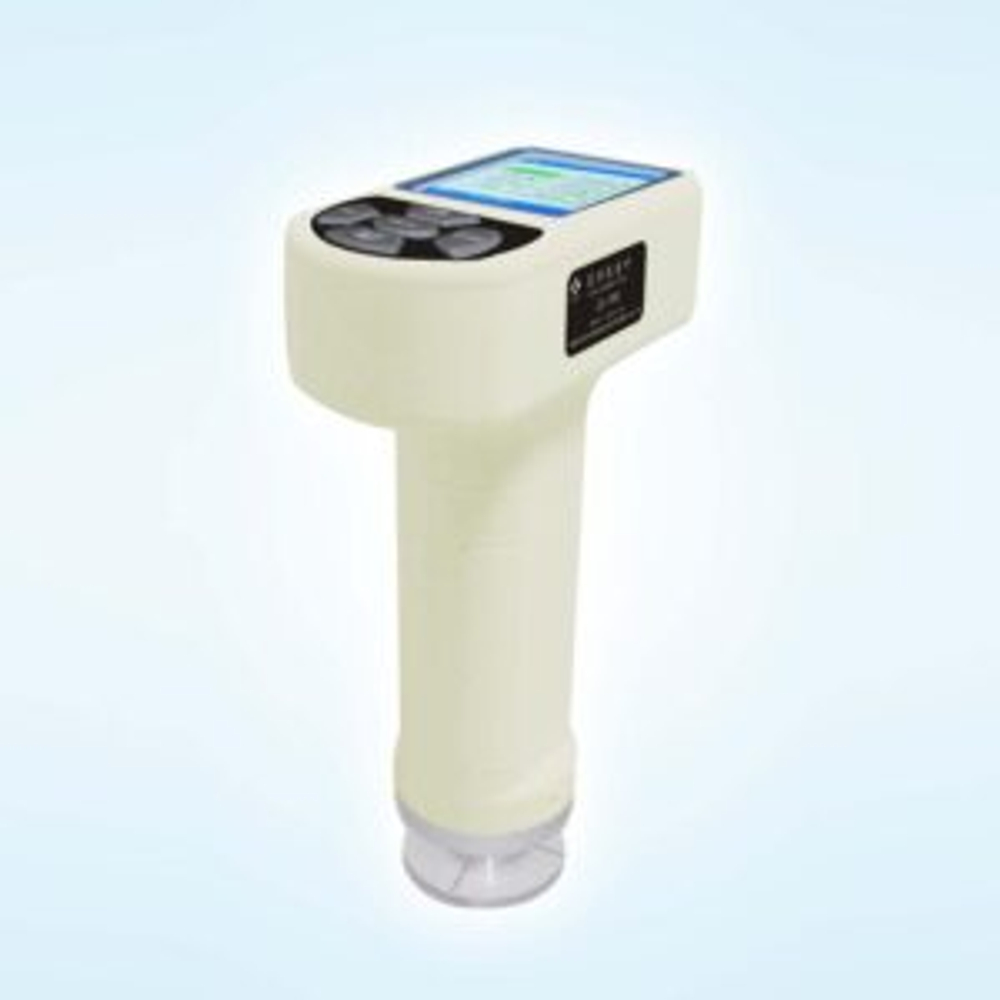

Model: JZ-300
Description
This colorimeter is mainly used for chromatism analysis and quality control for plastic, rubber, spraying, printings, garment, printing and dyeing industries. It’s designed and made as per CIE1931, 1976 standards.
Applications
Color difference quality control during Injection molding & production process
Color difference inspection and control for printings
Surface treatment color difference analysis of paintings, electroplatings
Metal manufacturing surface color difference inspection
Features
Has lab and Lch two mode, can freely switch to test
Clear chromatism measurement interface, automatic indentification of chromatism and trend
Uses imported high quality LED lighting source and sensors
English operation menu, English analysis software
Stable performance, durable in use, economical in price
Can test uneven color surface
Professional analysis software can do analysis on color chart and data
Outer connect micro printer available(optional)
Technical specifications
| Lighting /By light system | 45/0 |
| Measuring diameter | Ø8mm |
| Display mode | L*a*b*,L*C*H*,△E*ab, △(L*a*b*), △(L*C*H*) |
| Measuring mode | Single time and average mode |
| Observe light source | D65 |
| Standard observer | 10°field view |
| Repeatability | Standard deviation < △E*: 0.1, ( measuring condition: 30times test average value by standard whiteboard) |
| Measuring interval | Approx 2secs |
| Power supply | 4pcs 5# battery or AC adapter |
| Operation temperature range | 0-40℃, lower than 85% RH |
| Overall size | L110 ×W60 ×h190mm |
| Net weight | 330g(not include battery) |
| Standard parts | Protection cover, analysis software, AC adapter, USB cable, carrying case |
| Optional part | Micro printer |
