Model: FWD-L100
Standard: ASTM E2835-11, ASTM D4695, TB10414-2003 / TB10102-2004(China), TP BF-StB (Germany)
The falling weight deflectometer is used to measure the vertical deflection of the load plate response of a surface to an impulse load. the deflections is either correlated to pavement surface or used to determine characteristics of the materials used for the pavement foundation. It can quickly & precisely obtain the dynamic deformation modulus (Evd value) of soil and other construction materials.

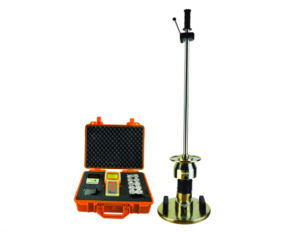

The deflectometer is comprised of a loading mechanism, a loading plate, a electronic settlement measuring device.
Features
a. Faster & lower cost
Within 3mins for each test point, rapid results obtained;
No external loading device needed, no pollution, no nuclear
b. Easy operation, human-friendly
Light in weight, compact size, human-friend design
Easy access to even narrow test place.
c. Reliable, higher accuracy
Key parts such as Sensor, data logger, loading damper are original imported types from Germany, guarantee high reliability and accuracy.
Technical specifications
Loading device
Total weight: 15kg
Drop hammer weight: 10kg
Max. impact power: 7.07KN
Continuous impact time:17.0±1ms
Material: zinc plated steel / alloy steel
Loading plate
Diameter: 300mm
Thickness: 20.0mm
Weight: 15.0kg
Material: zinc-plate alloy steel
Electric sink tester
Sink testing range: 0.1-2.0mm±0.02mm
Evd Pressure testing range: 10MPa-225MPa
Power supply: Lithium battery
Temperature application range: 0-40℃
Overall size: 368mm×268mm×168mm
Storage capacity: 2000 groups test curves
Weight: 4kg
Total Configurations
Loading mechanism, loading plate, electronic settelment measuring meter, printer, PC software, operation manual, carrying case
