Model: TSJ-1B
The portable vane shear tester is used to directly test the undrained shear strength of clay and remolded soil at the engineering site. It is a geotechnical in-situ testing instrument.

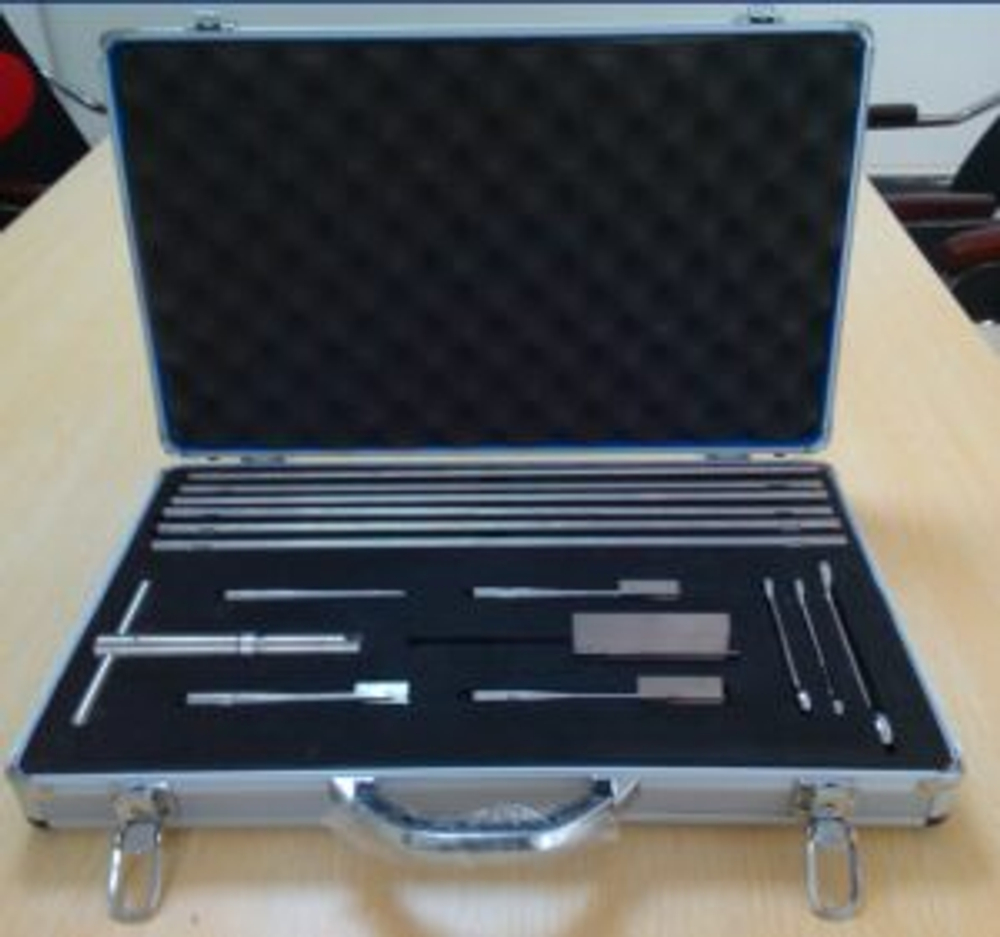

The whole set of instrument consists of 1 spring torsion meter, 6 extension rods, 3 cross heads of different sizes, 1 head rod and 3 wrenches. The maximum test depth is 3m, the maximum test range is 0-260kPa, and the test accuracy is better than 10%.
Specifications
| No. | Dimensions /mm | Measure range /kPa | Index |
| A | 20 x 40 | 0 to 130 | 1 |
| B | 16 x 32 | 0 to 260 | 2 |
| C | 25.4 x 50.8 | 0 to 65 | 0.5 |
| Optional | 50.8 x 101.6 | 0 to 8.125 | 0.0625 |
