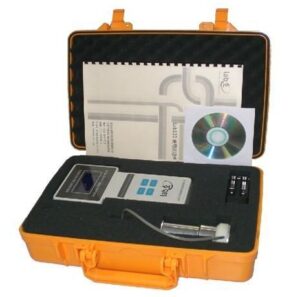

Model: Lab 131(Octane Number and Cetane Number analyzer), Lab 132(diesel cetane number analyzer), Lab 133(Gasoline octane number analyzer)
Standards: ASTM D 2699, ASTM D 2700, ASTM D 473,ASTM D 613, EN ISO 5165
Description
This Octane & Cetane tester is specially used for analysis of gasoline, diesel, machine oil, transformer oil, through test the insulation magnetic permeability and electromagnetic induction electric charge characteristics to test the octane number and cetane number. It’s kind of high sensitive instrument, it can measure micro dielectric medium. It’s kind of portable oil product testing instrument.
Features
Precision measurement of octane number, diesel cetane number, diesel coagulation point
Comprehensive data measurement of petroleum products
Temperature correction function,
Can measure the gasoline that contains additives
Sync indication of RON, MON, AKI, AKI= (RON+MON)/2
Measurement of diesel cetane number, diesel type and condensation temperature
Powerful process chip, compatible with WINDOWS System
Easy operation, compact size, portable, vibration proof,
4-row LCD display, suitable for low temperature, power indicator, external low voltage power
Technical specifications
Measuring item: gasoline, diesel
Measuring range: octane number: 40-120(0.5% accuracy), cetane number: 20-100(1% accuracy)
Sample measuring time:<10sec
Working current: 30mA
Battery operation time: 1000hours
Operation temperature range: -10℃~+40℃
Relative humidity: 30%~80%R.H.
Barometric pressure: 64~106kpa
Overall size: 60mm×100mm sensor, main machine 80mm×150mm×30mm
