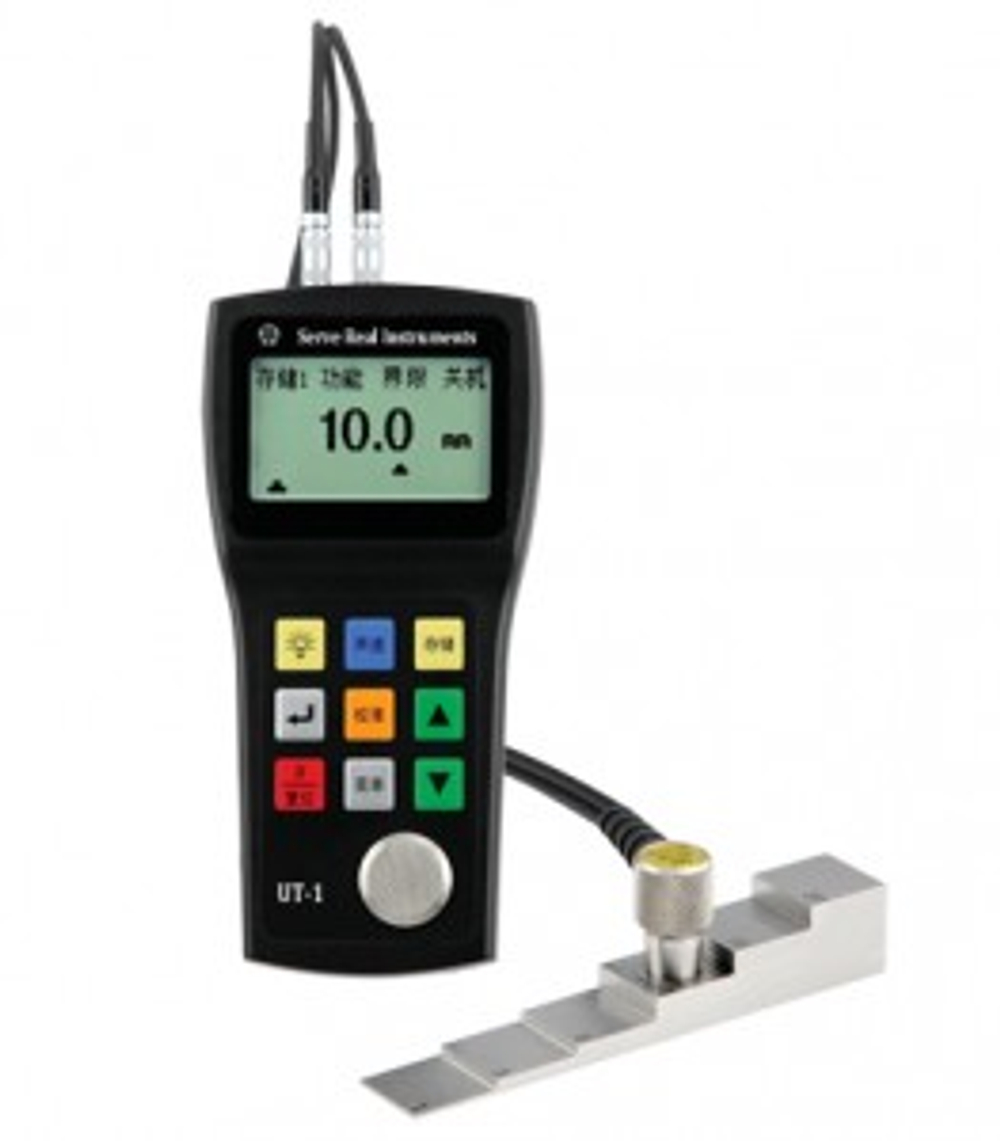

Model: UT-1
Description
This type ultrasonic thickness meter is kind of portable material thickness tester, it can test metal and nonmetal objects, it’s widely used in industry inspection area, it’s kind of common material NDT instrument.
Technical specifications
| Work mode | impulse-echo way | Size
| 5.86×2.87×1.25 inch; 149x73x32 mm (HxWxD)
|
| Test range | 0.8-300mm, depend on probe, tested material, surface condition | Net Weight
| 200g / 0.44lb (including batteries)
|
| Unit and resolution | mm/-0.1 mm | Data logger capacity
| Up to 500 readings can be divided into a maximum of 5 files (user-selectable)
|
| Probe zero point calibration | one point calibration( normal thickness measure) two points calibration( when measure hook face wall thickness or for special application, can improve the test accuracy remarkably. | Option accessories
| Attachable rubber case Numerous special probes on request Couplants and high-temperature couplant 4-step/6-step block for calibration Data transmission cable Application software
|
| V path correction | automatic V sonic path distance correction, offset double crystal probe non-linearity degree. | Operating language
| English and Chinese
|
| Indication error
| ±0.1mm ( <10mm) | Measuring error
| Up to 1in:+/-0.002in or +/-0.1mm Above 1in:+/- 1%H H is the height of the testing object
|
| Repeatability | ±0.1mm | Repeatability
| +/-0.001in or +/-0.1mm
|
| Display: | 128×64 dot-matrix LCD screen (1.65×2.24 inch; 42x57mm) EL backlight and switchable contract ratio Digit height: 0.54in or 13.75mm
| Interfaces
| RS 232 Serial port in combination with a communicative cable; Data transfer parameters: 8 bits, 1 stop bit, 9600 baud, no parity.
|
| Measurement refresh frequency
| 4 Hz in standard measurement mode 25 Hz in MIN capture mode
| Power supply | Two pcs 1.5V AA alkaline batteries |
| Material sonic velocity range
| 1000 to 9999 m/s; 0.039 to 0.394 inch/µs
| Continuous working period
| Up to 200 hours (without backlight)
|
| Auto shut-off
| After 5 minutes of non-use
| Operation temperature
| -10C to +50C; +14F to +122F Specification to -20C/-4F on request
|
