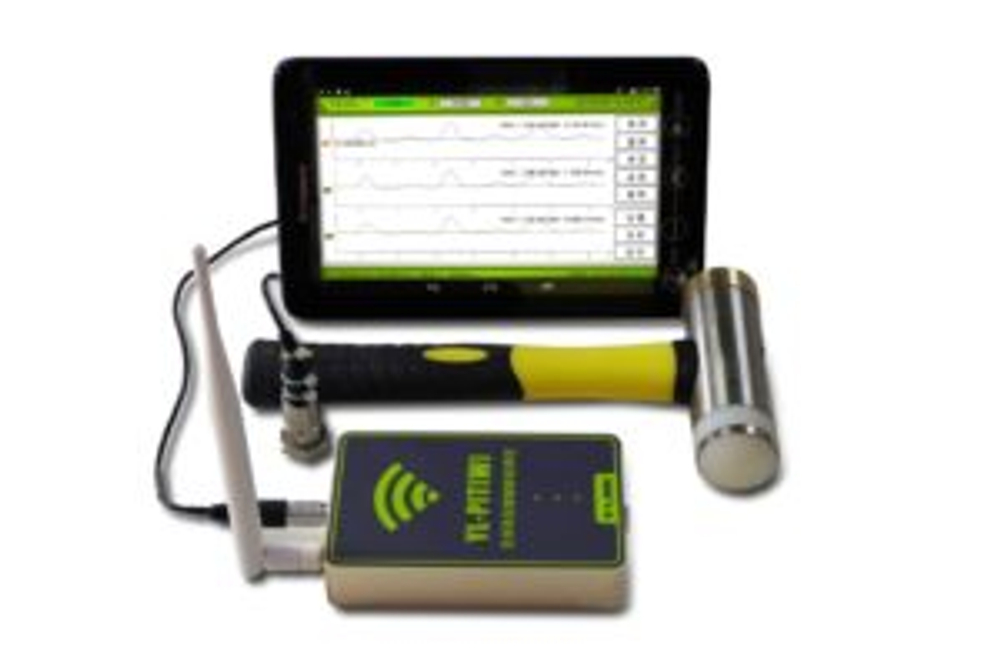

Model: PIT-801F
It’s a split portable pile driving analyzer with wireless communication.
Features
- Unique smart voice function for your easy operation.
- Big screen for easy wave viewing.
- Small size and super light weight design improves holding comfort.
- Power-efficient hardware platform for excellent battery performance.
- High accuracy data acquisition, high signal-to-noise ratio.
- Built-in high sensitivity antenna for stable wireless communication.
- Your first choice in severe environment.
Specifications
| Model | PIT-801F |
| Control unit | Low power embedded industrial processor |
| Voice function | Smart voice prompt |
| Storage capacity | 16G(can be extended to 128G) |
| Power mode | Rechargeable lithium battery≥8 hours |
| Operation Mode | Tablet |
| Data transfer mode | USB2.0 |
| Sampling interval | 5μs ～ 200μs |
| Record size | 1024 points |
| Sampling resolution | 24-bit A/D |
| Signal bandwidth | 5Hz~12kHz |
| System noise | ＜30μv |
| Dynamic range | ≥100dB |
| Channel | 1 |
| Sensor | Piezoelectric accelerometer/Speedometer |
| Operation temperature | -20℃ ~ +55℃ |
| Dimension | 132×183×26mm |
| Weight | About 0.5kg |
Software
- Upgraded wave viewing function allow you to zoom in/ (or) out, compress (or) expand, and rotate the wave for a closer view.
- Analysis assistant function provides useful tools, such as digital filter, exponential amplifier, integration, differential and frequency analysis.
- Comprehensive summary and detailed wave analysis can be edited in a flexible way.
- Batch note and smart auto-fill functions improve work efficiency.
- Single pile report, multiple-pile (site) report and Multiple site (Project) report with wave diagrams are easy to produce and can be exported.
