Model: MP-J200
Introduction

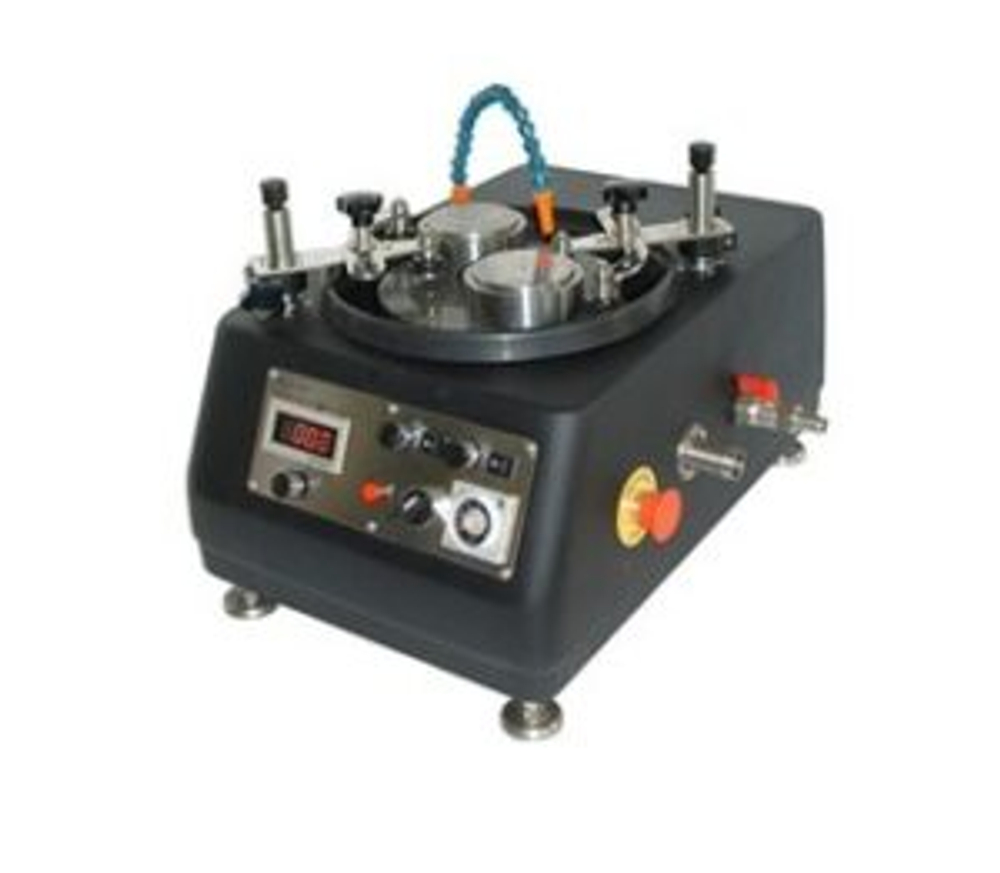

The MP-J200 automatic precision grinding and polishing machine is a new generation equipment specially designed for processing and preparing precise samples of crystals, ceramics, glass, metals, rock, mineral, refractory materials, PCB boards, and composite materials. It is equipped with a 203mm diameter grinding and polishing disc and two processing stations. Selecting appropriate accessories can produce high-precision samples in batch.
Main features
- Precision polishing disc
- Precision rotating shaft with little fluctuation
- Two processing stations
- The grinding disc with digital display and stepless speed regulation realizes smoother surface grinding and polishing.
- Timer that can automatically stop working
- Optional dripper or circulating pump for automatic liquid feeding
Technical parameters
| Rotation speed of grinding disc | 0-250rpm |
| Work stations | 2 |
| The number of swings of the carrier plate | 0-9 times/min |
| Grinding disc diameter | 203mm (flatness is less than 0.0025mm per 25×25mm) |
| Rotation axis fluctuation | the end of the tray jumps less than 0.010mm |
| Diameter of carrier plate | 80mm |
| Processing sample | rectangular plane with diameter ≤80mm or diagonal length ≤80mm |
| AC power supply | 110/220 volts, power: 275W |
| Tray end jump | 0.008/180mm, |
| Timing | 0-300h |
| Speed regulations | Stepless speed regulation, manipulator can swing |
| Volume | 580×420×350mm |
| Net Weight | 68kg |
