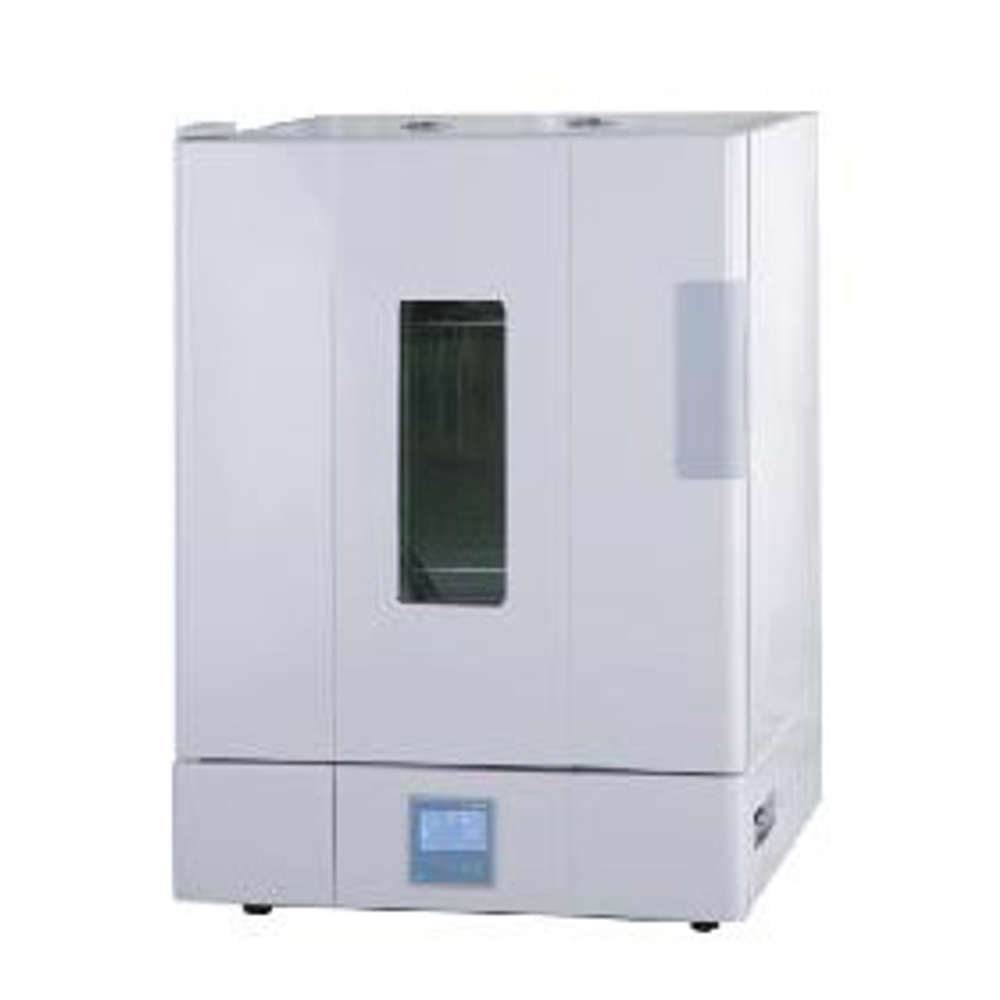

Model: BPG
Features
1. Human-friendly design
a. Large LCD display, easy in operation and observation
b. mirror stainless steel interior liner, semi-arc with four corners, split holder free unloading, easy for cleaning work.
2.Programmable multi-segments controller features(optional)
a. programmable control on temperature, time, temperature rising speed, speedy heating drying.
b. 15 segments 30 steps programmable program can be preset, each segment set time for 199 hrs 99mins, circulation fan rotation speed adjustable.
c. programmable control for easier test process, reach automatic control and running.
3.Self-diagnose function
a. Running error indication on display when error occurred;
4.Easier data processing(optional)
can connect with printer, 485 Communication port or USB interface, easy for print and data transmission.
5. Safety-guaranteed function
a. thickened wall and door design guarantee user’s safety
b. independent temperature limit alarm system, sound-light alarm, guarantee safe operation
c. temperature high low limit alarm
6.Superior energy-saving design
a. less power consumption
b. new type silicon compounds sealing strip can prevent heat loss and prolong heating parts tooling life, 25% less thermal power with traditional equipment.
Technical specification
| Type | BPG-9056A | BPG-9106A | BPG-9156A |
| Power supply | AC220 50Hz | ||
| Input power | 700W | 1100W | 1600W |
| Control range | RT+10~200℃ | ||
| Temperature resolution | 0.1℃ | ||
| Constant temperature fluctuation | ±1℃ | ||
| Temperature uniformity | 2.5% | ||
| Shelf | 2pcs | 3pcs | |
| Liner size (mm)W*D*H | 375*370*370 | 455*430*510 | 560*530*595 |
| Volume | 50L | 100L | 175L |
| Timing range | 1~9999min | ||
Optional parts
Multi-segment programmable temperature controller
Built-in printer
Independent temperature limit controller
Rs 485 port and communication software
Text alarm system
