Description

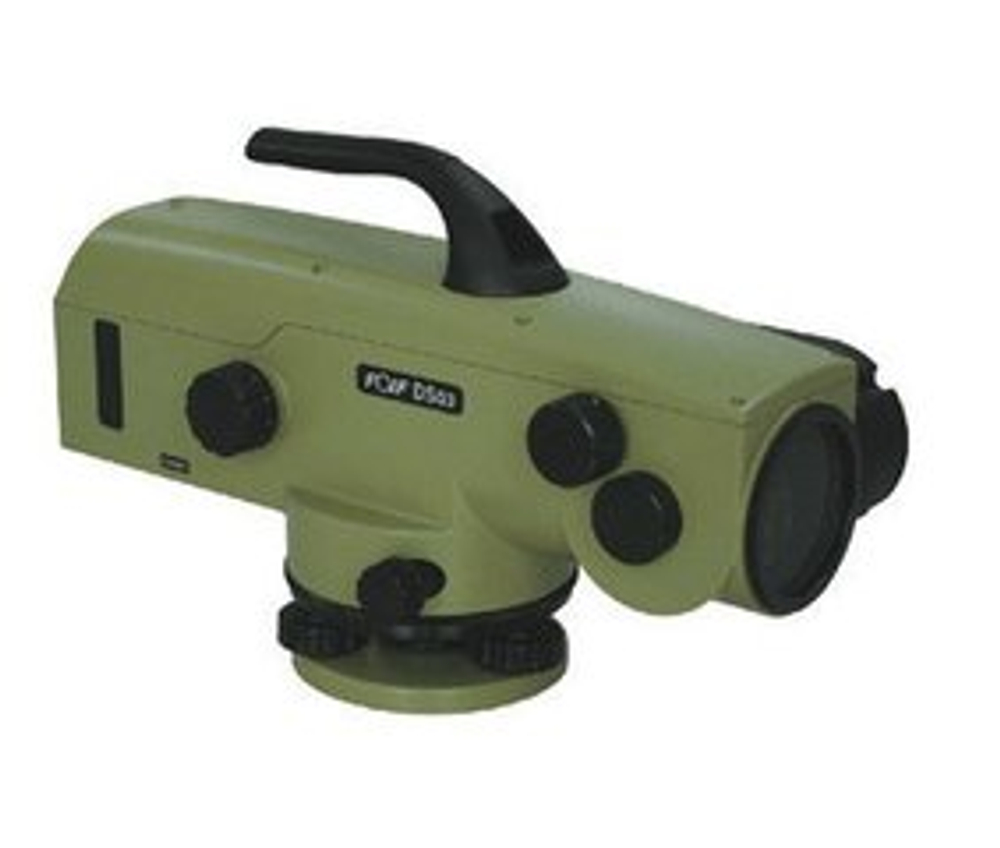

The DS03 precision automatic digital level is kind of high accuracy automatic survey instrument, built-in micrometer plate, automatic compensation technology, built-in encoder, digital circuit, screen directly display micrometer reading, accuracy up to 0.01mm, reliable and accurate. The digital level is widely used in geological survey, large machine installation, industry measurement, and precision engineering measurement. This digital level is kind of advanced survey equipment.
Technical Specifications
| 1km double max standard deviation | ≤0.3mm |
| Telescope | erect image |
| Amplification times | 42× |
| Objective caliber | 50mm |
| Shortest sighting distance | 1.2m |
| Multiplying constant | 100 |
| Additive constant | 0 |
| Compensator working range | ±15′ |
| Setting accuracy | ±0.2″ |
| Circular level accuracy | 5′/2mm |
| Micrometer range | 10mm |
| Reading mode | coded circle |
| Reading mode: | LCD digital display |
| Min indicating reading: | 0.01mm |
| Micrometer reading accuracy | 0.01mm |
| Battery working duration | ＞10hrs |
Optional parts
2m/3m Invar staff
2m bar code staff
