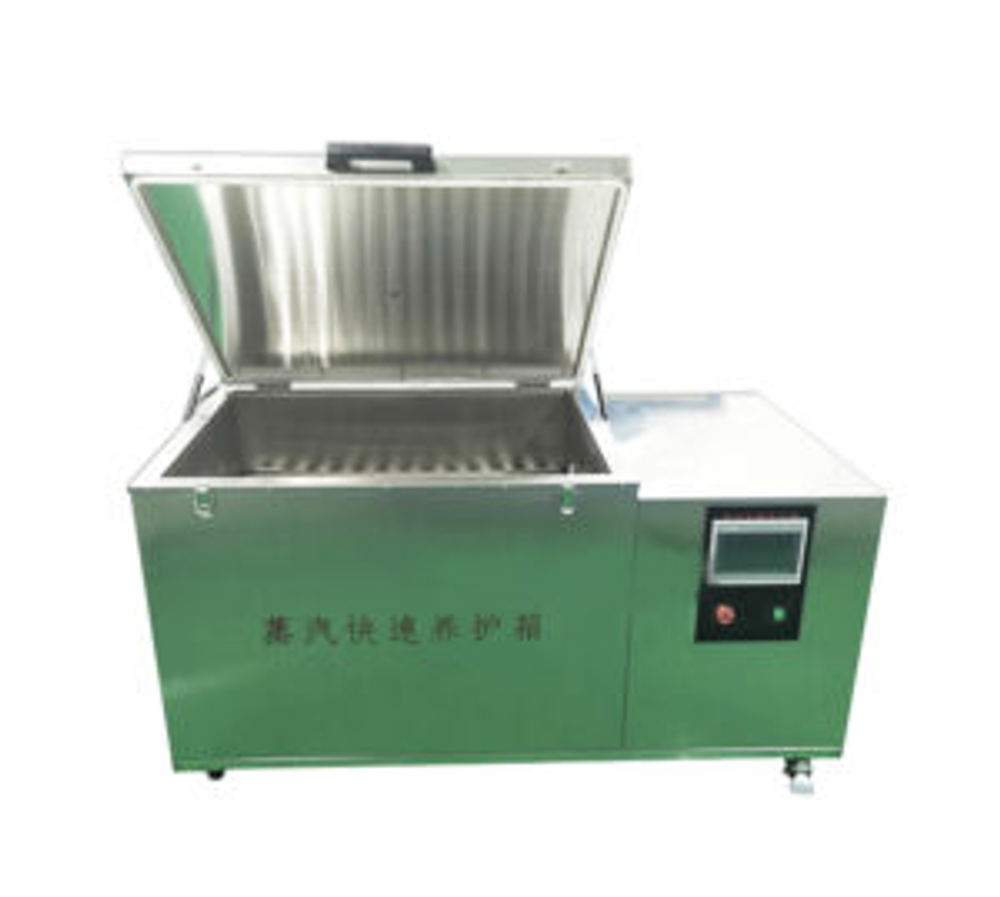

Programmable accelerated curing tank ASTM C684

Model: HYH-4424

Standards: ASTM C684, BS 1881:112, JTG/T F50-2011

It’s a programmable accelerated curing equipment for concrete specimens. It can process both hot water & steam curing. The curing temperature, period, program can be setup in advance. The temperature rise rate is adjustable. The whole structure are fully made of stainless steel.

Technical parameter

1. Specimen size with mold: 195mm×195mm×175mm
2. Inner diameter of the box: 955mm×725mm×620mm
3. Overall dimensions: 1415mm×890mm×900mm
4. Number of sample groups: 8 groups (24 pieces in total)
5. Temperature rise rate: ≤15℃/h (adjustable)
6. Heating power: 4.0KW (new heating tube)
7. Work power supply: AC220±10V, 50/60HZ

Working conditions

1. Ambient temperature: 5℃～30℃
2. Environmental relative humidity: ≤85%
3. No vibration, no corrosive medium, and no strong electromagnetic field interference around.

Structure

The test instrument is composed of a test box and a heating water tank. The inner tank, outer shell and test piece placement frame of the box are made of high-quality SUS304 stainless steel. The insulation layer is made of polyurethane integral foam, which has good insulation and corrosion resistance.
