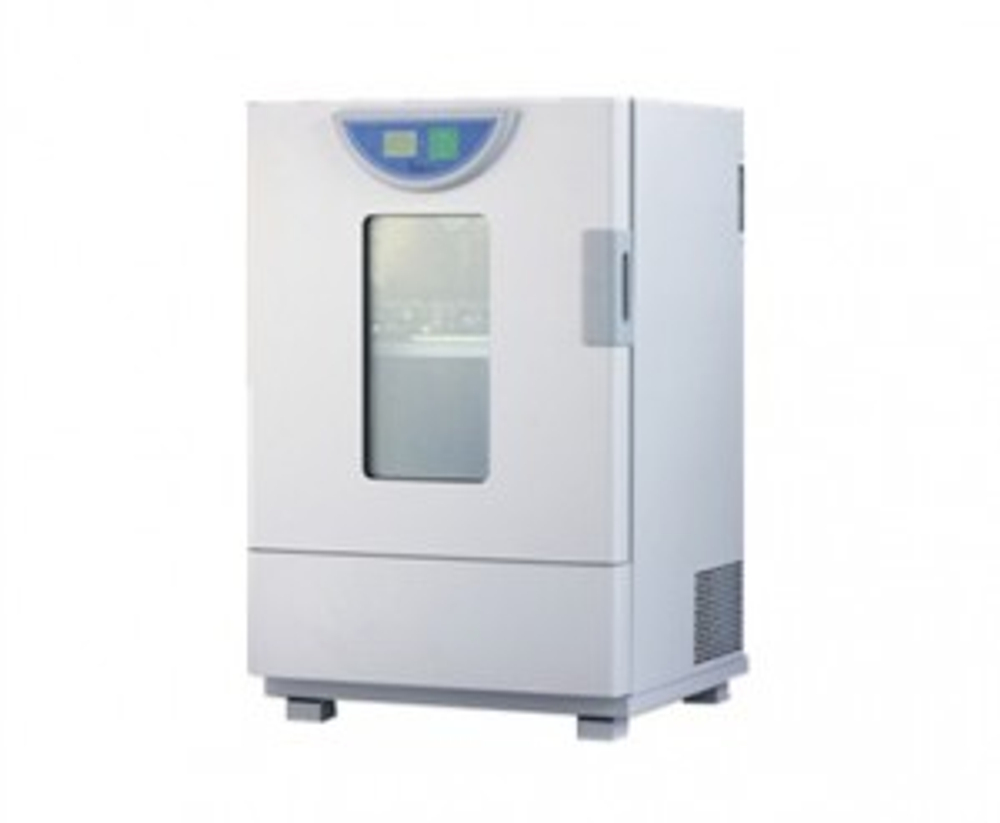

Model: CT-LH
Features
◆Human design
Large LCD display, easy operation and observation
Stainless steel liner, semicircle arc transition, free handling of shelf, easy for cleaning
Built-in low speed rotational rotary platen, guarantee each sample can have uniform test and obtain uniform test results.
◆Multi-sector programmable controller
MCU program control temperature, time and temperature rise rate, speedy test
Preset 30sections program, each section of 1-9999mins
Program adjustable wind door, rotational speed stepless adjustable
◆Easy data processing(optional)
Can connect with printer, RS485 Communication port, USB port.
◆Safety function
Independent temperature limit alarm system, sound and light alarm prompt operator, guarantee safe operation.
Technical Specifications
| Model | CT-LH-401A | CT-LH-402A |
| Power supply | AC 220V, 50HZ | |
| Control range | RT+20~250 Degree C | |
| Temperature fluctuation | ±0.5 Degree C | |
| Temperature uniformity | ±1 Degree C | |
| Ventilation volume | 100~200times/H | |
| Platen rotational speed | 10 -12rpm | |
| Timing range | 0-9999min | |
| Standards | JB/T7444-94 | |
| Working chamber size(W*D*H) | 450mm*450mm*450mm | 600mm*600mm*600mm |
