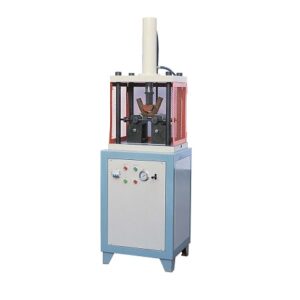

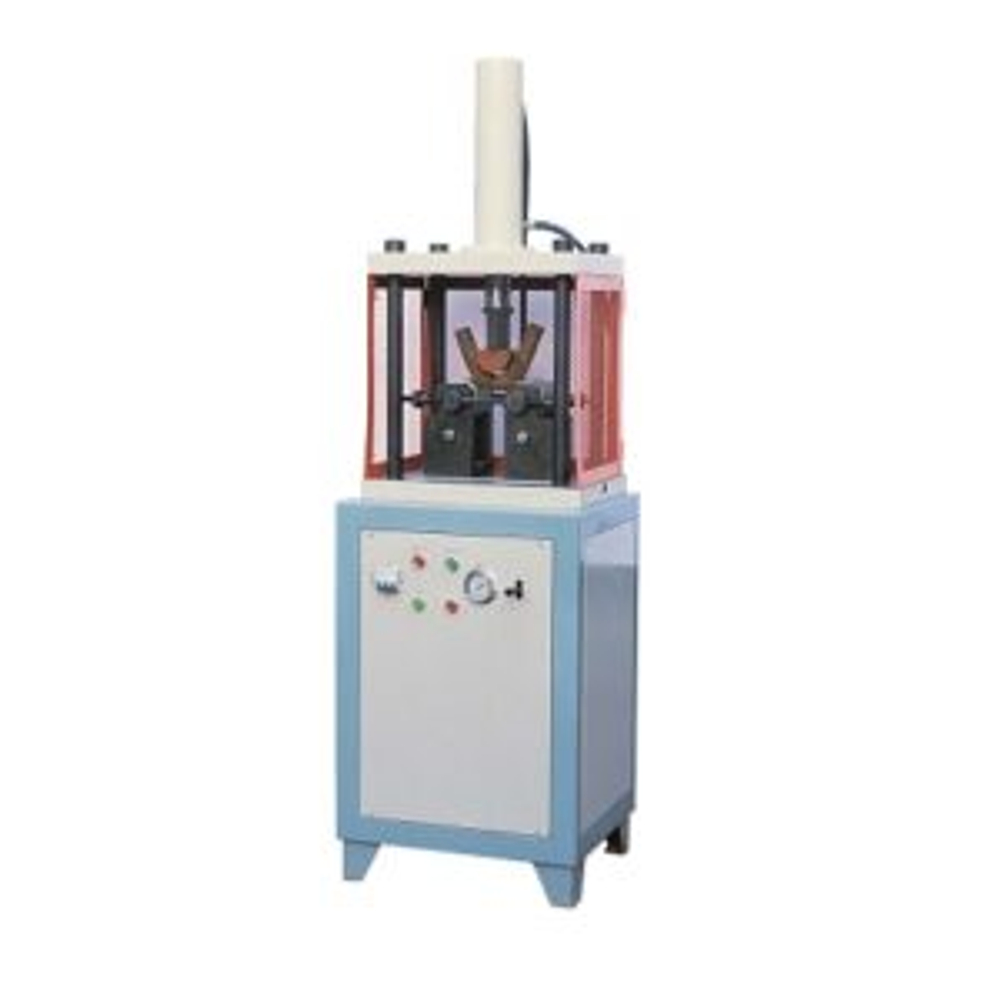

Model: GWQ-40
Standards: GB/T232-1988
Description
Turning platen type bending device, adjustable gap, bending angle indication, setting, automatic stop, inching function, reliable working, easy operation. This rebar bending tester is kind of common material testing machine.
Compared with UTM
| Term | GWQ-40 | Universal testing machine(UTM) |
| Bending angle | Positive bending 0-180°, can’t negative bend | Positive bending can’t reach 180°, can’t negative bend |
| Sample installation | one time | one time |
| Sample unload | Translation | Translation |
| Test rate | Fast | Slow |
| Slim sample | One time multi pcs | One time multi pcs |
| Working platform | small, easy sample install and unload | large or high |
| Support | double support | Double support |
| Professional | professional | Multipurpose |
| Floor space | Small | Large |
| Space height | High | High |
| Angle indication | LCD display | human observation |
| Angle judgement | automatic stop as per angle | Human stop |
| Inching fine tuning | yes | no |
Technical Specifications
| Max bending diameter | Φ40mm |
| Positive bending angle | Positive bending angle:0-180° can’t negative bending |
| Pump working pressure | 30Mpa |
| Piston lifting speed | V1=80mm/min |
| Piston descent speed | V2=160mm/min |
| Piston stroke | 270mm |
| Motor power | N=0.37KW |
| Power supply | 380V/220V |
| Angle indication | Digital display |
| Max test force | 160KN |
| Net weight | 400Kg |
| Overall size | 550x380x1800mm |
| Bending type | turning platen type |
