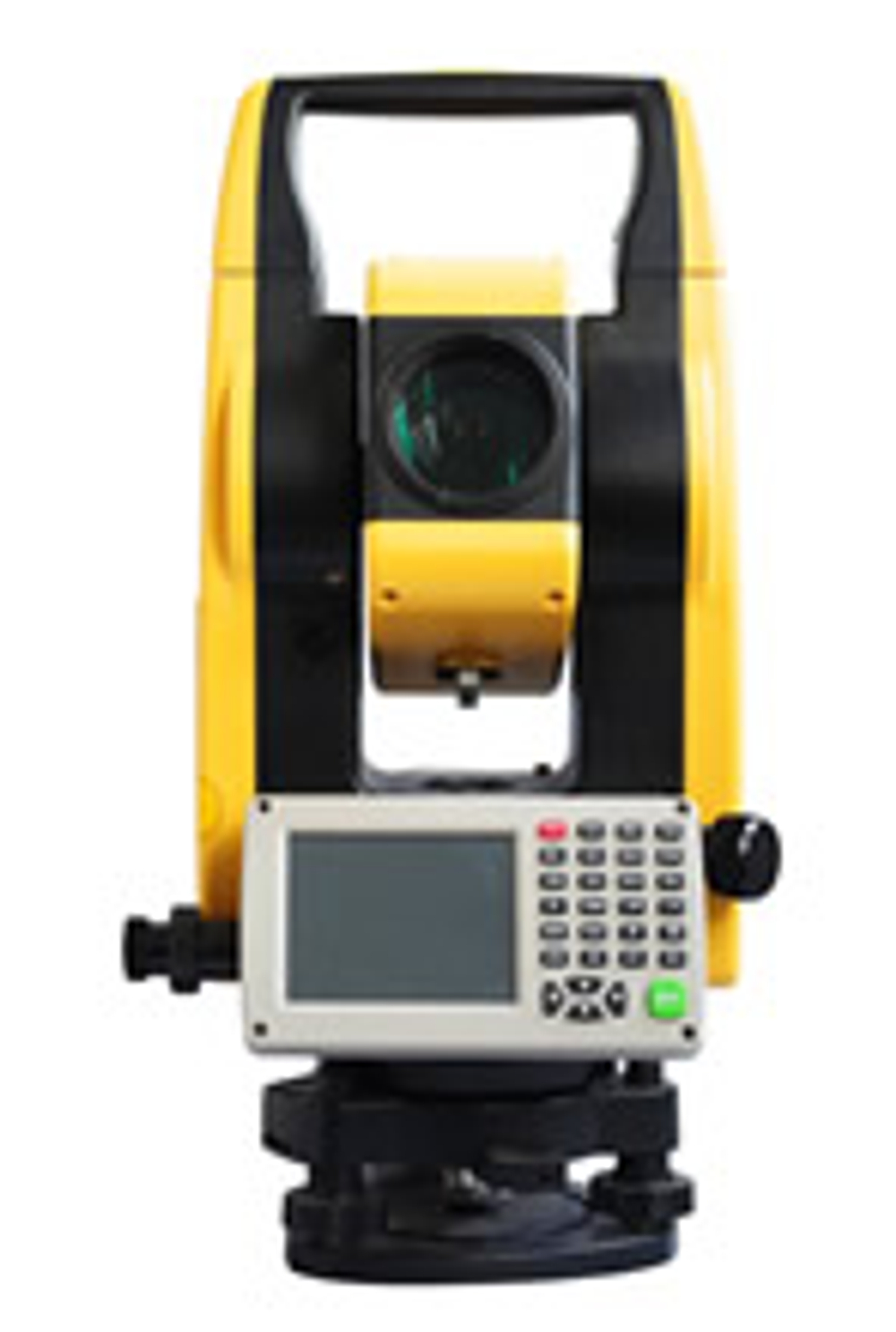

Model: DTM-L100
Features
Windows CE operation System
Color Touching Screen Operation
Non-Prism Laser Ranging
Absolute Coding Angle Measurement
Double Axis Photoelectric Tilt Sensor
Convenient Mode of Data Swap
1G RAM Store Massive Data
Technical specifications
| Range | Non-prism | 300m / 500m |
| Prism | Single Prism: 3000m, Three Prism:5000m | |
| Accuracy | Non-prism | ±(5mm+3ppm*D) |
| Prism | ±(2mm+2ppm*D),±(3mm+2ppm*D) | |
| Unit | m/ft | |
| Display | Max: 99999999.99m, Min:0.1mm | |
| Measuring time | Precise model:1S, Track model:0.8S | |
| Number of time Set | 1~99 | |
| Meteorological correction | Input parameters automatic correction | |
| Prism constant | Input parameters automatic correction | |
| Angle Measurement Section | ||
| Method | Absolute coding | |
| Grating diameter | 79mm | |
| Minimum reading | 1” | |
| Detection | Horizontal | Diametrical detection |
| Vertical | Diametrical detection | |
| Accuracy | 2” | |
| Telescope Section | ||
| Imaging | Positive | |
| Length | 170mm | |
| Effective aperture | 48mm | |
| Magnification | 30X | |
| Angle of vision | 1.5° | |
| Distinguish ability | 3.5” | |
| Minimum focus distance | 1.5m | |
| Compensator | ||
| System | Double axis photoelectric tilt sensor | |
| Working range | ±3′ | |
| Distinguish ability | 1” | |
| Display Section | ||
| Type | Double sides lattice 240X320 LCD,3.5 inch touching screen operation | |
| Operation System | Microsoft Windows CE.NET 5.0 | |
| Data Transmission | ||
| Port | USB, RS-232C | |
| Internal storage | 1G(RAM) | |
| Others | ||
| Center point aligning | Optical or Laser mode | |
| Power | DC7.4V, 4000mAh | |
| Continuous working time | >8 hours | |
| Overall dimension | 174X207X383mm | |
| Net Weight | 6.8kg | |
| Working temperature | -20℃~50℃ | |
