Model: KY-350

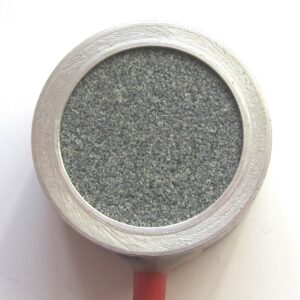

The Resistance pore water pressure cell utilizes differential resistance method to measure the pore water pressure in construction structures, it’s widely used in embankment seepage monitoring.
Technical specifications
| Model | KY-350 |
| Measuring range | 30Kpa-1Mpa (30KPa,50KPa,100KPa,200KPa,300KPa,400KPa,500KPa,1MPa) |
| General accuracy | ±0.5% |
| Output sensitivity | 0.8mV/V |
| Excitation voltage | 2-10VDC |
| Temp. range | -10~+55℃ |
| Cell diameter | Ф11mm, Ф28mm |
| Wiring mode | Input-output: AC→BD |
| Resistance | 350Ω |
| Resistance-voltage conversion rate | 1με=1μV |
| Overload | 120%F.S |
| Insulation resistance | ≥200MΩ |
