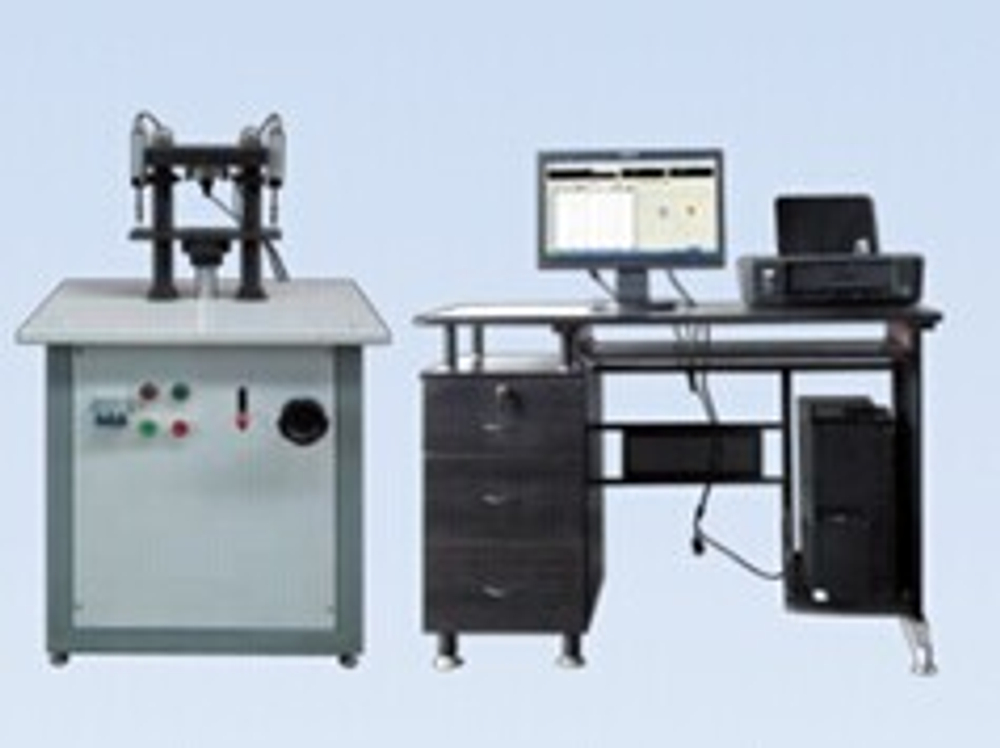

Rock indentation hardness meter

Model: YYD-10B

Description

This equipment is used to test the indentation hardness and plasticity coefficient of various kinds of rock, and it can generate loading-depth curve. It’s kind of very common rock test equipment for oil and exploration industry.

Main features

■ Manual shift, adjustable speed

■ Real time record test curve, high speed acquisition

■ Data and report process function, can edit, print

■ Overload automatic stop function

Technical specifications

Max. test force: 10kN

Platen size: Φ83mm

Test range: 0-10kN

Piston stroke: ≤130mm

3% overload automatic stop

Rate voltage: 380V/220V

Indication accuracy: ≤±1%

Motor power: 0.37kW

Platen space: ≤120mm

Total weight: 400kg

Column net space: 125mm

Main machine overall size: 600×500×1260
