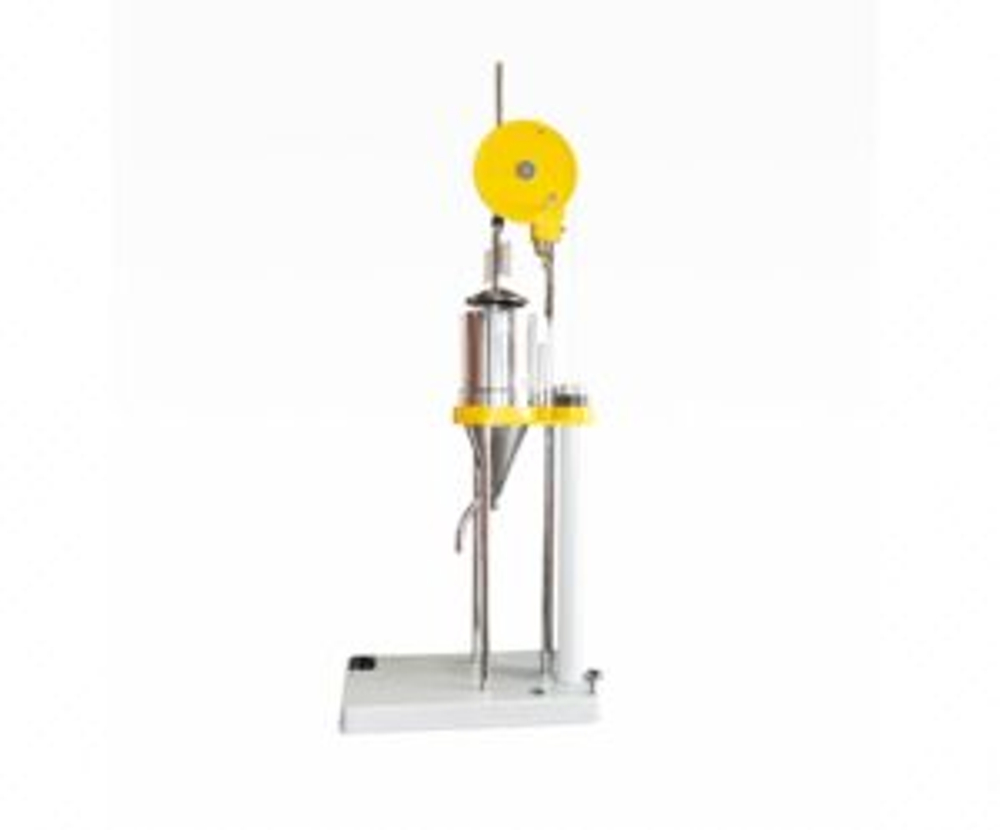

Schober-Rigler beating degree tester ISO 5267.1

Model: ZS-DJD-100

Standards

1. “GB/T 3332 Determination of Pulp Beating Degree (Schober-Rigler Method)”
2. “ISO 5267.1 Determination of Pulp Water Filterability Part 1: Schober-Rigler Method”
3. “QB/T 1054 pulp beating degree measuring instrument”

The Pulp beating degree tester is a special instrument for measuring the drainage performance of pulp. The product is designed according to the Schuber-Rigler method and is used to detect the water filtration capacity of the diluted pulp suspension, that is, the determination of the degree of beating.

Features

1. Simple construction, nice appearance, easy to operate.
2. The pouring chamber (cup body) is made of copper and electroplated to prevent rust and corrosion.
3. Adopting three-legged leveling mechanism to adjust the centering of the sealing cone, ensured the sealing performance of the sealing cone and cylinder.

Specification

1. Measuring range: 1oSR~100oSR
2. Graduation cylinder indexing value: 1oSR
3. Time of overflow outlet: 149±1S
4. Remaining volume: 7.5ml~8ml
5. Dimensions: 450mm×250mm×1220mm
6. Weight: about 40kg
