Standards:GB/T17671-1999, ISO 679:1989

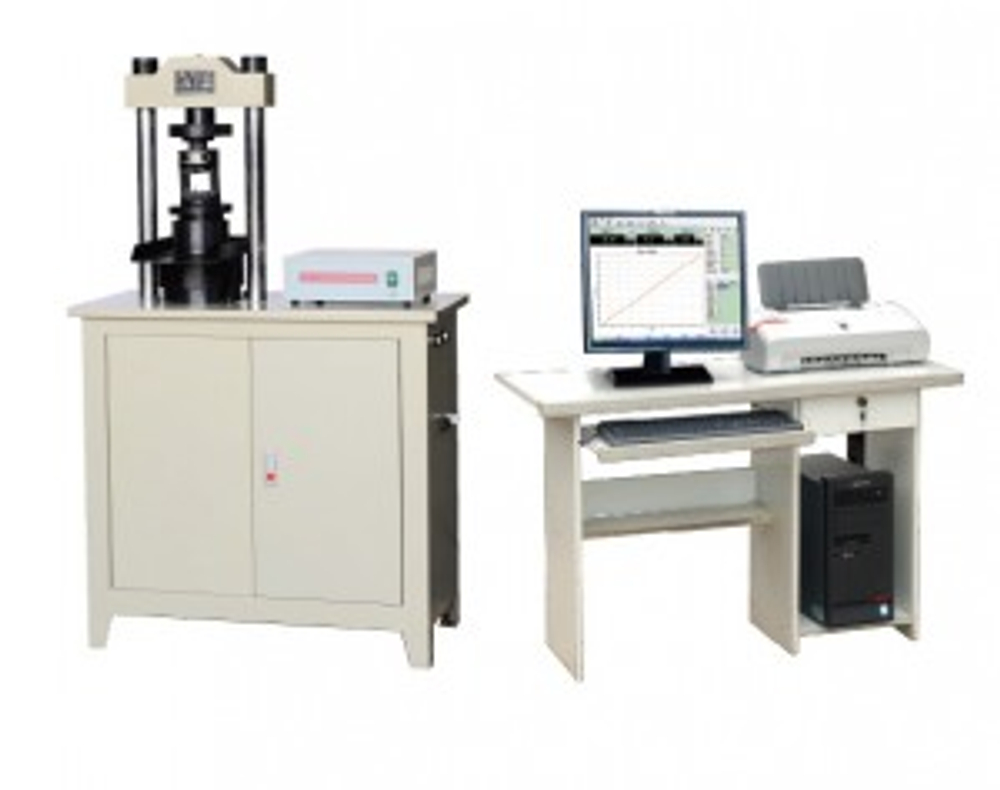

Model: CTM-300H
Application
Cement mortar compression test, concrete compression test, brick compression test
Features PLC+ Computer control, 80% less fault rate Servo motor adapted, much less stuck fault caused by oil impurity
Technical specifications
| Max. Load | 300kN |
| Load relative error | ≤±1% |
| Loading rate | 0.3KN/S～10KN/S |
| Loading rate error | ±5% |
| platen size | φ120mm |
| Piston Max. stroke | 60mm |
| Piston Dia. | φ130mm |
| Max. Hydraulic pressure | 25MPa |
| Pump rated flow | 1.52L/min |
| Motor power | 0.75kW |
| main frame overall size | 870×450×1400mm |
| Main machine net weight | 400Kg |
