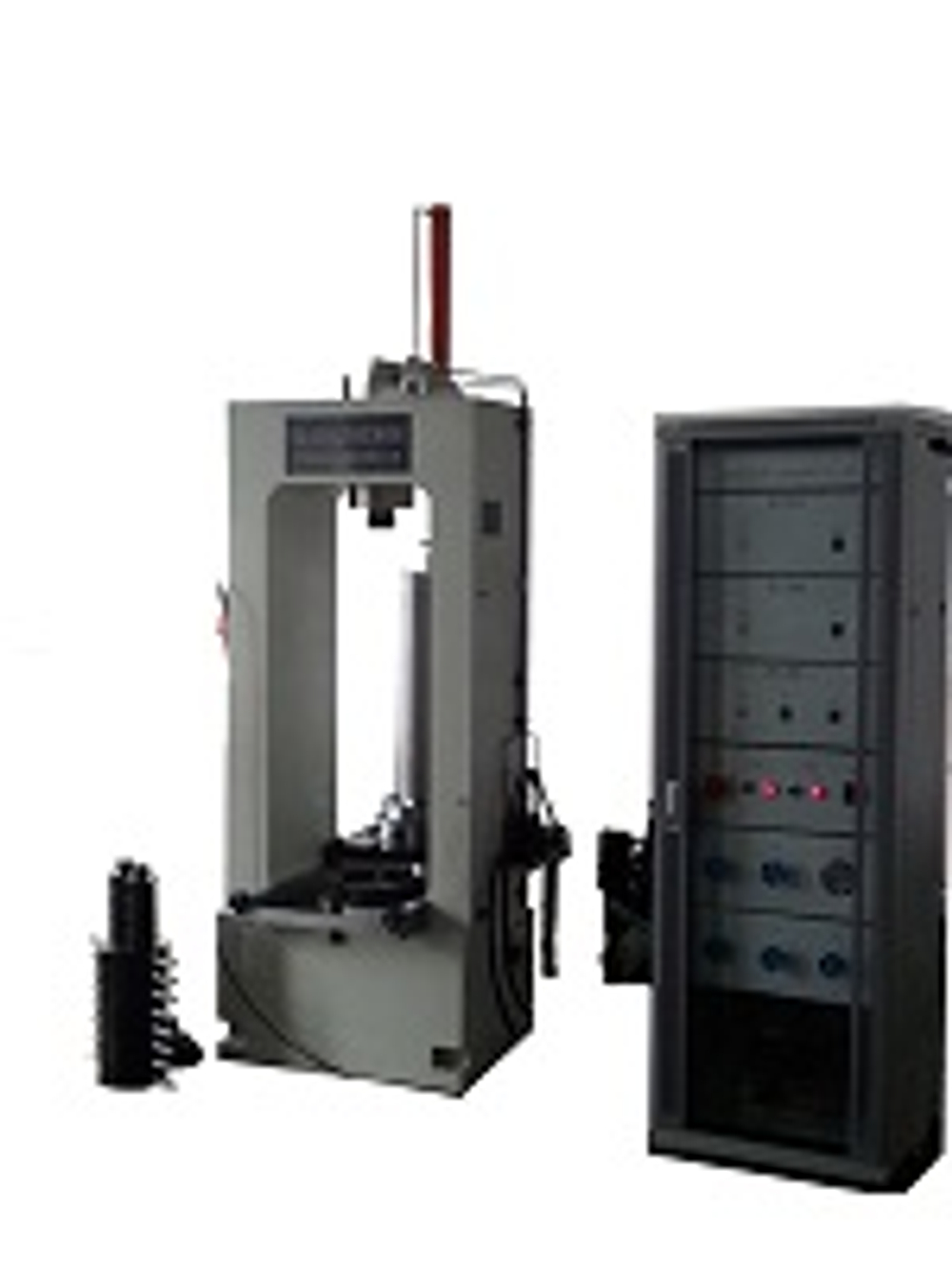

Model: YSZ-600
Features
High measuring definition, no grading in full scale
Automatic reset, calibration, automatic storage
Constant test load, deformation, constant displacement, uniform test rate, uniform deformation rate controllable
Overload, over scale, oil path blocking, over oil temperature, specimen broken protection function available
Main technical specifications
| Machine Rigidness | >5GN/m | ||
| Axial Test Load
| Max Load | 600KN | |
| Resolution | 10N | ||
| Measurement Accuracy | ±1% | ||
| Confining Pressure
| Max Pressure | 60Mpa | |
| Accuracy | ±2% | ||
| Resolution | 0.1Mpa | ||
| Deformation | Range | Axial 0-5mm, Radial 0-3mm | |
| Resolution | 0.0001mm | ||
| Accuracy | ±1% | ||
| Displacement
| Range | 0-100mm | |
| Accuracy | <±0.5%F.S | ||
| Resolution | 1/10000 | ||
| Controlled Waveform | User Can Self Define Multi Kinds Of Procedure Waveform | ||
| Loading / Unloading/Loading Keeping Time | 0-30hrs | ||
| Test Space | 350*400(H*W) | ||
| Sample Size | Φ75x150mm. Φ50x100mm | ||
| Main Machine Dimension | 1400*800*2200(mm) | ||
| Main Machine Net Weight | 3000kg | ||
